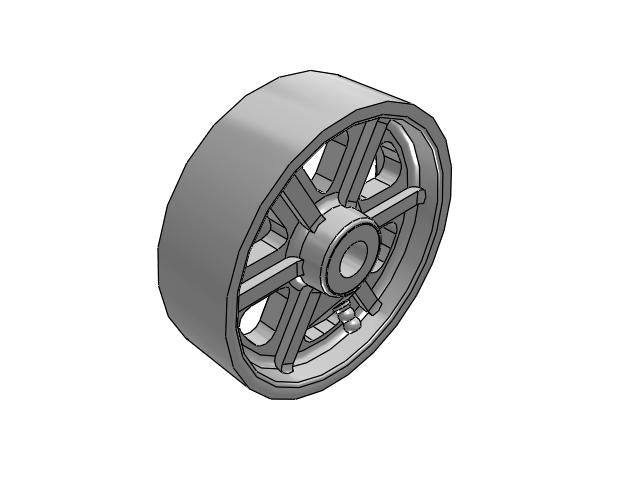

5" x 1.5" CA Cast Iron Wheel - CA0510110

Albion Casters CA Cast Iron Wheels 5" x 1.5" Grey Wheel

Albion CA Cast Iron Wheels – Heavy-Duty Strength for High-Capacity Applications Albion’s CA Series cast iron wheels—sometimes referred to as semi-steel—are trusted across industries for their exceptional strength, durability, and cost efficiency. With a tensile strength of 30,000 psi, these premium wheels are among the strongest in the industry, making them a reliable solution for high-capacity applications where performance and long service life are critical.

• Heavy-duty carts and equipment
• Bearings: Straight Roller for smooth, low‑maintenance rolling.
• Temperature Range: Up to +800°F
• Hardness: Brinell 145
• Size: 5" x 1.5" tread.
• Color: Grey

Specifications

• Dynamic Load Capacity: 600.0 lb
• Bearing ID: 5/8"
• Wheel Bore: 1-3/16"
• Hub Length: 1-5/8"
• Wheel Diameter: 5"
• Tread Width: 1.5"
• Temperature Range: Up to +800°F
• Hardness: Brinell 145
• Part Number: CA0510110

Tested to ANSI ICWM standards for lasting safety and performance.
