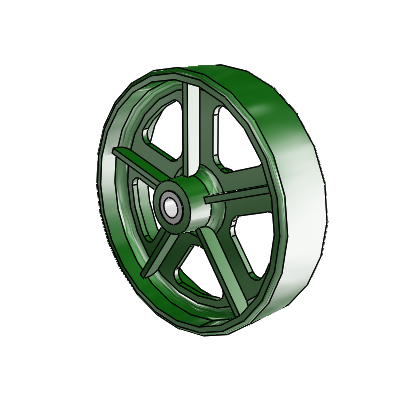

Colson Casters Cast Iron 5" x 1.25" Flat Tread Green tread on Green core Wheel
Colson Cast Iron Wheels – Maximum Strength for Extreme Loads Colson Cast Iron Wheels are the go-to choice when excessive load weights and high impact resistance are required. Built from high-strength cast iron, these wheels can withstand sharp impacts and punishing conditions, making them ideal for heavy-duty material handling equipment.
-
Bearings: Sleeve for smooth, low‑maintenance rolling.
-
Tread Profile: Flat Tread for predictable tracking.
-
Temperature Range: -45°F to +500°F
-
Hardness: Brinell 145
-
Size: 5" x 1.25" tread.
-
Color: Green tread on Green core
Specifications
-
Dynamic Load Capacity: 300.0 lb
-
Bearing ID: 0.6250"
-
Hub Length: 1.4688"
-
Wheel Diameter: 5"
-
Tread Width: 1.25"
-
Temperature Range: -45°F to +500°F
-
Hardness: Brinell 145
-
Part Number: 2.00005.12
Tested to ANSI ICWM standards for lasting safety and performance.
