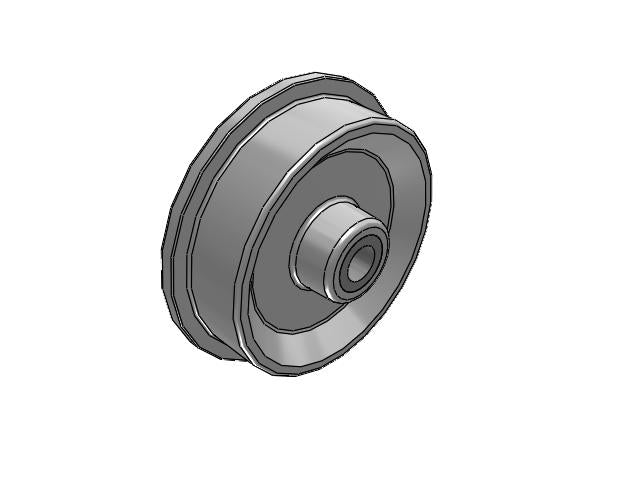

Albion Casters FL Flanged Cast Iron 5.375" x 1.3125" Grey Wheel
Albion FL Single Flange Cast Iron Wheels – Strength and Precision Tracking Albion FL Series single flange cast iron wheels are built for guided movement and high-capacity performance in demanding industrial applications. Featuring a tensile strength of 30,000 psi, these cast iron wheels deliver the durability and strength needed for rail-guided carts, tracks, and custom material handling systems.
- Rail-guided carts and trucks
-
Bearings: Straight Roller for smooth, low‑maintenance rolling.
-
Temperature Range: Up to +800°F
-
Hardness: Brinell 145
-
Size: 5.375" x 1.3125" tread.
-
Color: Grey
Specifications
-
Dynamic Load Capacity: 900.0 lb
-
Bearing ID: 3/4"
-
Wheel Bore: 1-3/16"
-
Hub Length: 2-3/16"
-
Wheel Diameter: 5.375"
-
Tread Width: 1.3125"
-
Temperature Range: Up to +800°F
-
Hardness: Brinell 145
-
Part Number: FL0520112
Tested to ANSI ICWM standards for lasting safety and performance.
