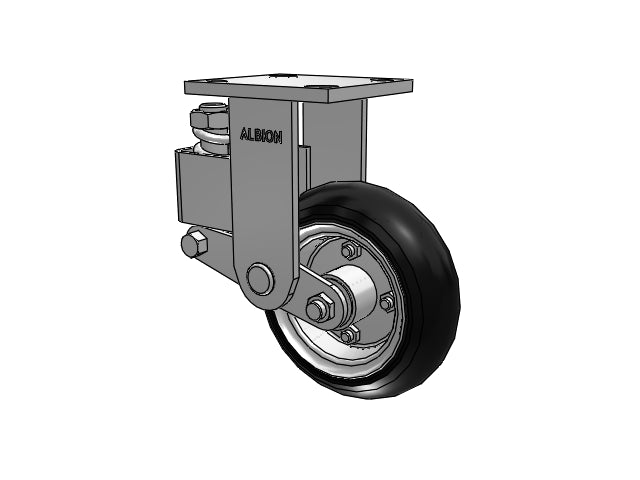

The Albion 40SZ06227R rigid caster features a 6" x 2" wide wheel and a 4-1/2" x 4" top plate, capable of a 250 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Designed with cargo protection and noise mitigation in mind, this spring-loaded caster series protects loads from damaging shocks or unwanted vibration and movement. Noise levels are also reduced through the dampening effect of these casters.
• Load Springs: Maximum rated capacity loads will deflect the wheel approximately 3/8” (50%)
• Top Plate & Yoke Base: Made from 1/4” steel plate and unnotched
• Swivel Section: Cold-formed, hardened double ball bearing raceways minimize ball indentation and wear
• Legs: 1/4” steel cold formed to increase strength and welded to the yoke base
• King Bolt: 5/8” diameter orbitally spun steel rivet
• Axle: 1/2” diameter hollow axle complete with lock nut
• Wheel Seals: Nylon seal retaining/thrust washers
SKU
|
40SZ06227R
|
Caster Type
|
Rigid
|
Raceway Type
|
Rigid, no raceway
|
Brake
|
None
|
Load Capacity
|
250 lb
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
SZ - Semi-Pneumatic Monoprene (Black)
|
Wheel Color
|
Black Tread on Zinc-plated Hub
|
Wheel Bearing
|
Industrial Ball Bearings
|
Wheel Profile
|
Traction Tread
|
Wheel Hardness
|
65-75 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
4-1/2" x 4" top plate
|
Bolt Hole Pattern
|
2-5/8" x 3-3/8" slotted to 3" x 3"
|
Bolt Size Recommended
|
3/8"
|
Mounting Height
|
8.5 in
|
Operating Temperature Range
|
-40°F to +180°F
|
Warranty
|
1 year
|
Manufacturing Number
|
40SZ06227R
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
