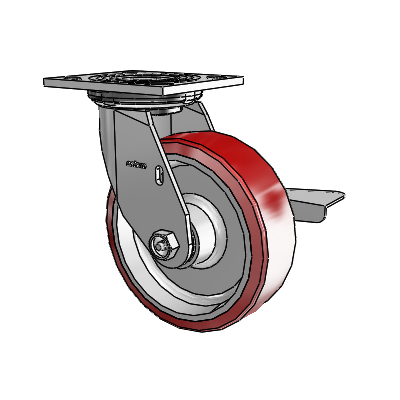

Colson 4.06109.939 BRK3 SEAL caster is a heavy duty caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
4.06109.939 BRK3 SEAL
|
Caster Type
|
Swivel
|
Raceway Type
|
Full double ball hardened raceways for better performance and durability with multi-temp grease for extreme hot and cold temperatures
|
Brake
|
Side Lock Brake (BRK3)
|
Wheel Description
|
Moldon Polyurethane (Aluminum Core)
|
Wheel Bearing
|
Roller
|
Fastening
|
4" x 4-1/2" Top Plate
|
Bolt Hole Pattern
|
2-5/8" to 3" x 3" to 3-5/8"
|
Bolt Size Recommended
|
3/8"
|
Warranty
|
3 year
|
Manufacturing Number
|
4.06109.939 BRK3 SEAL
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
