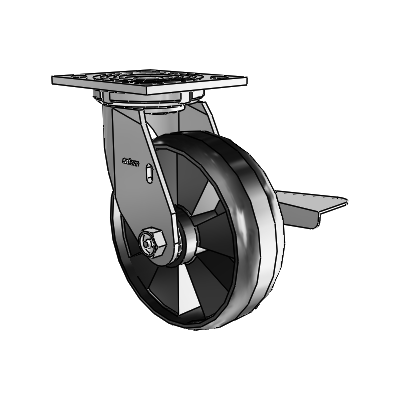

Colson 4.06109.531 SS BRK3 WB11 caster is a heavy duty 304 stainless steel caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
4.06109.531 SS BRK3 WB11
|
Caster Type
|
Swivel
|
Raceway Type
|
Full double ball hardened raceways for better performance and durability with multi-temp grease for extreme hot and cold temperatures
|
Brake
|
Side Lock Brake (BRK3)
|
Wheel Description
|
Maxim
|
Wheel Color
|
Black
|
Wheel Bearing
|
Delrin
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
85(+/-5) Shore D
|
Fastening
|
4" x 4-1/2" Top Plate
|
Bolt Hole Pattern
|
2-5/8" to 3" x 3" to 3-5/8"
|
Bolt Size Recommended
|
3/8"
|
Operating Temperature Range
|
-40F to +240F
|
Warranty
|
3 year
|
Manufacturing Number
|
4.06109.531 SS BRK3 WB11
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
