Colson 4 Series 6"x2" Performa Flat Tread Swivel Caster – Grey, 600 lb Capacity, 4"x4.5" Plate

World's Best Soft Wheel
Colson Casters SKU: 4.06109.459
Fastening: 4" x 4-1/2" Top Plate | Load Capacity: 600 lb
Mount Height: 7.5 in | Swivel Radius: 5 in

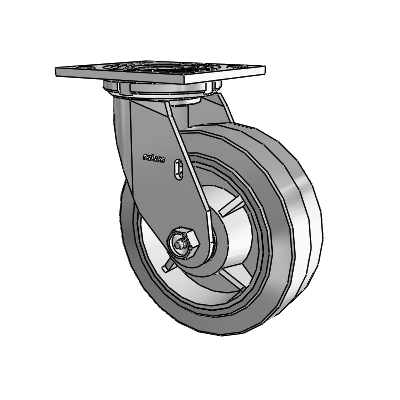

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:
Sale price$37.56 Regular price$47.00

Description

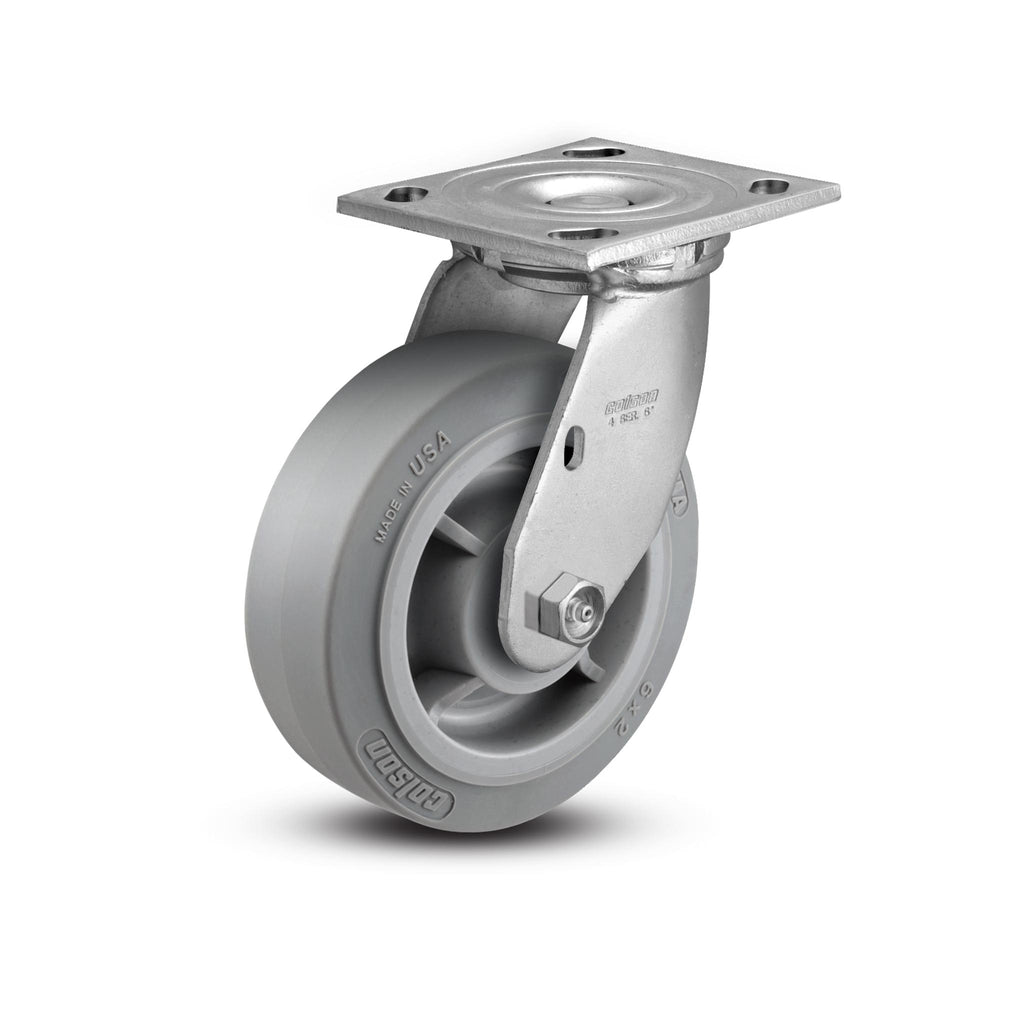

Colson 4 Series 6" x 2" Performa Flat Tread Wheel Swivel Caster – 4" x 4.5" Top Plate, 600 lb Capacity, USA-Made Quality

The Colson 4 Series 4.06109.459 swivel caster pairs Colson’s legendary 6" x 2" Performa wheel with the most trusted 2"-wide rig in the industry. Built for heavy-duty applications and unmatched durability, this caster supports up to 600 lbs dynamic load capacity per caster and is ANSI ICWM tested for long-lasting performance and safety.

The Performa wheel—often imitated but never duplicated—is the world’s best soft wheel, delivering quiet, smooth rolling with superior shock absorption, debris rejection (including metal shavings), and chemical resistance. Its flat tread profile boosts load capacity and stability while maintaining floor protection and easy maneuverability.

The 4 Series rig is engineered for the toughest jobs, featuring a 3/4" permanent rivet kingpin (vs. the 5/8" industry standard) for superior strength and service life. Full double ball hardened raceways, a 1/4" thick top plate, and grease fittings on both the swivel raceway and wheel ensure smooth operation and easy maintenance.

Why Choose the 6" x 2" Performa Flat Tread Caster?

  • World’s Best Soft Wheel – Quiet, floor-protective, and outlasts TPR or rubber competitors

  • Flat Tread Stability – Increased capacity and tracking performance

  • Heavy-Duty Rig Construction – 3/4" kingpin for greater strength than standard 5/8" designs

  • Long Service Life – Full double ball raceways and greaseable fittings

  • Chemical & Moisture Resistant – Ideal for demanding industrial use

  • USA-Made Quality – Many wheel and rig components manufactured in the USA

Key Features

  • Wheel Size: 6" x 2" Performa rubber, flat tread, grey tread on grey core

  • Capacity: 600 lbs per caster

  • Mounting Plate: 4" x 4.5" overall, slotted holes for secure mounting

  • Rig Type: Colson 4 Series swivel rig, zinc-plated finish

  • Bearings: Roller bearing with plastic seal/retainer washer

  • Axle: 1/2" hollow axle with grease zerk and lock nut

  • Lubrication: “Colson 45” multi-temp grease for hot and cold environments

  • Warranty: 3 years

Ideal Applications

  • Warehouse carts & floor trucks

  • Shop carts & dollies

  • Waste disposal trucks

  • Material handling & industrial equipment

Need a brake or rigid version?
We offer the Colson 4 Series Performa in multiple wheel sizes, tread profiles, mounting styles, and brake options. Contact us for volume pricing or custom builds.

Product Details

Load Capacity:
600 lb
Mounting Height:
7.5 in
Wheel Tread Width:
2 in
Wheel Description:
Performa Rubber (Flat/Grey)
Wheel Color:
Grey Tread on Grey Core
Wheel Bearing:
Roller
Wheel Profile:
Slight crown
Wheel Hardness:
65 Shore A (+/- 5)
Wheel Thread Guards:
None
Fastening:
4" x 4-1/2" Top Plate
Bolt Hole Pattern:
2-5/8" to 3" x 3" to 3-5/8"
Plate Bolt Size Recommended:
3/8"
Swivel Radius:
5 in
Raceway Type:
Full double ball hardened raceways for better performance and durability with multi-temp grease for extreme hot and cold temperatures
Brake:
None
Swivel Lock:
None
Toe Guard:
None
Finish:
Zinc
Axle Size:
1/2" hollow axle with grease zerk and lock nut
Operating Temperature Range:
-40°F to +180°F
Mfg:
4.06109.459
Warranty:
3 year
SKU
4.06109.459
Conformity:
RoHS compliant; NSF component (less thread guards)

CAD Model and Datasheet Downloads
