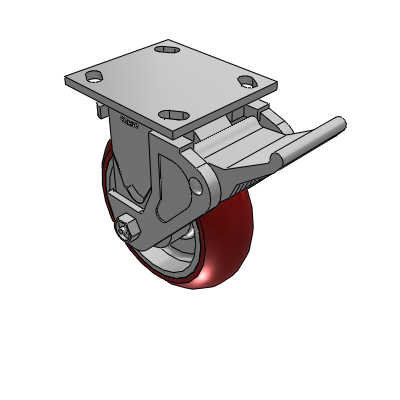

Colson 4.06108.9PC BRK2 LH7.25 caster is a heavy duty caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
4.06108.9PC BRK2 LH7.25
|
Caster Type
|
Rigid
|
Brake
|
Tech Lock Brake (BRK2)
|
Wheel Description
|
CG Max Maroon
|
Wheel Bearing
|
Precision Ball
|
Fastening
|
4" x 4-1/2" Top Plate
|
Bolt Hole Pattern
|
2-5/8" to 3" x 3" to 3-5/8"
|
Bolt Size Recommended
|
3/8"
|
Warranty
|
3 year
|
Manufacturing Number
|
4.06108.9PC BRK2 LH7.25
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
