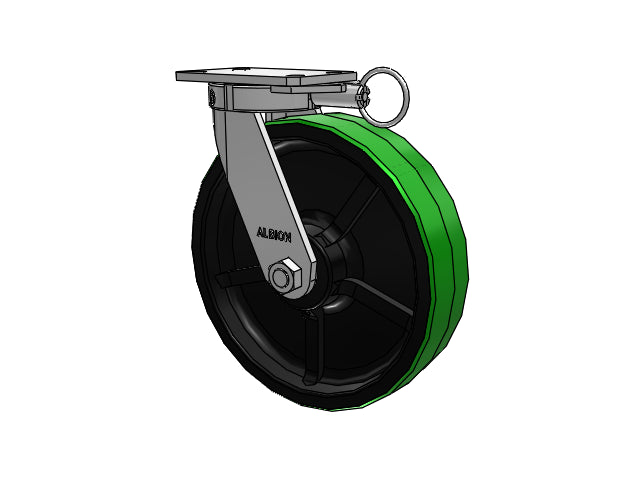

Kingpinless 12"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock

Roll over to zoom; image may be representative for size Click on image to zoom

Kingpinless 12"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock

Name: Kingpinless 12"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock
Brand: Albion Casters
SKU: 310PY12501SL
Price: 401.89 USD
Availability: InStock

Kingpinless

Albion Casters SKU: 310PY12501SL
Fastening: 6-1/4'' x 4-1/2'' top plate | Load Capacity: 3500 lb
Mount Height: 13.5 in | Swivel Radius: 8.69 in
See "Product Details" and below CAD model for full specs.

Ships In: usually 2-3 weeks **FREE Shipping on orders over $250**

Price:

$401.89

Quantity:

Share this product

The Albion 310PY12501SL swivel caster features a 12" x 3" wide wheel and a 6-1/4'' x 4-1/2'' top plate, capable of a 3500 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This USA-made series is a 3” wide-wheel workhorse designed to handle shock and impact. Constructed from high-quality, heat-treated AISI 1045 laser-cut steel, this series provides trusted performance. Precision machined raceway, fully welded legs (inside and outside), and kingpinless design delivers superior strength in rugged applications. This series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.

• 3-Year warranty
• Laser-cut steel construction
• Top Plate: 5/16" AISI 1045 heat-treated steel welded inside and out for longer life
• Swivel Section: One row of 1/2" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
• Yoke Base: Notched AISI 1045 steel
• Legs: 3/8" thick welded inside and out for strength
• Axle: 3/4" diameter
• Finish: RoHS Zinc plating with clear coat, for greater corrosion resistance than paint

SKU	310PY12501SL
Raceway Type:	Kingpinless construction with large 1/2" ball bearings mounted in a precision machined heat-treated raceway with zerk
Brake:	None
Load Capacity:	3500 lb
Mounting Height:	13.5 in
Wheel Tread Width:	3 in
Wheel Description:	PY - Polyurethane (Cast Iron Core)
Wheel Color:	Green Tread on Black Cast Iron Core
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	95 Shore A
Wheel Thread Guards:	None
Fastening:	6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern:	2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Plate Bolt Size Recommended:	1/2"
Swivel Radius:	8.69 in
Swivel Lock:	Swivel Lock (L)
Toe Guard:	None
Finish:	Zinc
Operating Temperature Range:	-40°F to +180°F
Mfg:	310PY12501SL
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

Kingpinless 12"x3" Green Poly-on-Iron Caster with 6.25"x4.5" Plate & Swivel Lock

Description

Product Details

SKU

310PY12501SL

Raceway Type:

Kingpinless construction with large 1/2" ball bearings mounted in a precision machined heat-treated raceway with zerk

Brake:

None

Load Capacity:

3500 lb

Mounting Height:

13.5 in

Wheel Tread Width:

3 in

Wheel Description:

PY - Polyurethane (Cast Iron Core)

Wheel Color:

Green Tread on Black Cast Iron Core

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

95 Shore A

Wheel Thread Guards:

None

Fastening:

6-1/4'' x 4-1/2'' top plate

Bolt Hole Pattern:

2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

Plate Bolt Size Recommended:

1/2"

Swivel Radius:

8.69 in

Swivel Lock:

Swivel Lock (L)

Toe Guard:

None

Finish:

Zinc

Operating Temperature Range:

-40°F to +180°F

Mfg:

310PY12501SL

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
