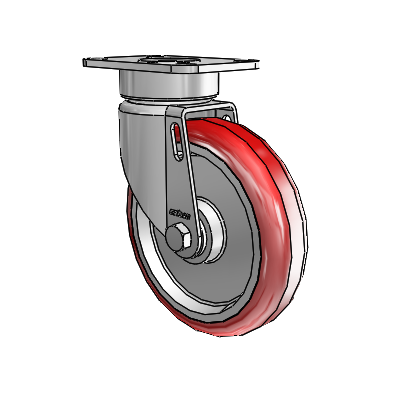

Colson 2.X5456.944 caster is a heavy duty 304 stainless steel caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
2.X5456.944
|
Caster Type
|
Swivel
|
Raceway Type
|
Highly ergonomic and quite precision ball bearing raceway
|
Brake
|
None
|
Wheel Description
|
HI-TECH Polyurethane
|
Wheel Color
|
Maroon on Grey
|
Wheel Bearing
|
Derlin
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
45(+/-5) Shore D
|
Fastening
|
2-1/2" x 3-5/8" Top Plate
|
Bolt Hole Pattern
|
1-3/4" x 2-13/16" to 3-1/16"
|
Bolt Size Recommended
|
5/16"
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
3 year
|
Manufacturing Number
|
2.X5456.944
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
