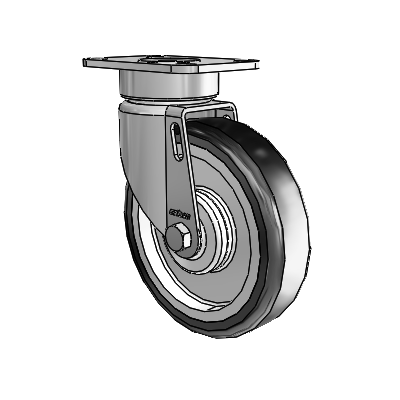

Colson 2.X5456.414 H caster is a heavy duty 304 stainless steel caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
2.X5456.414 H
|
Caster Type
|
Swivel
|
Raceway Type
|
Highly ergonomic and quite precision ball bearing raceway
|
Brake
|
None
|
Wheel Description
|
High-Temp TPE
|
Wheel Color
|
Grey on Grey
|
Wheel Bearing
|
Precision Ball
|
Wheel Profile
|
Flat Tread
|
Wheel Hardness
|
65(+/-5) Shore A
|
Fastening
|
2-1/2" x 3-5/8" Top Plate
|
Bolt Hole Pattern
|
1-3/4" x 2-13/16" to 3-1/16"
|
Bolt Size Recommended
|
5/16"
|
Operating Temperature Range
|
-40F to +180F
|
Warranty
|
3 year
|
Manufacturing Number
|
2.X5456.414 H
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
