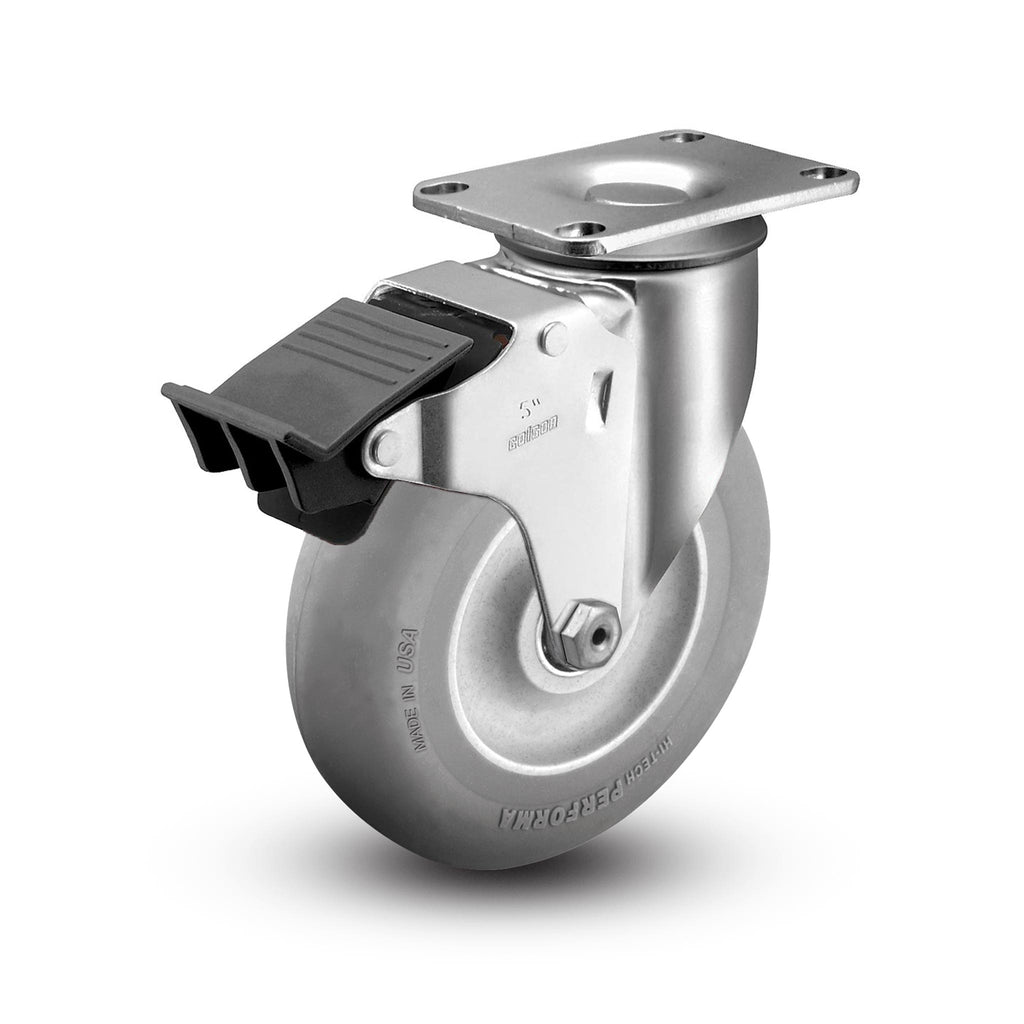

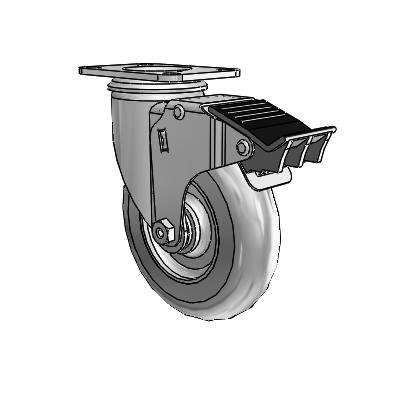

Colson 2 Series 5" x 1.25" Round Tread Performa Wheel Swivel Caster with Total Lock Brake – Maximum Stability, Smooth Rolling, and Floor Protective
The Colson 2 Series 2.05256.565 BRK5 swivel plate caster pairs Colson’s proven 2 Series rig with a round tread Performa wheel and a total lock brake for secure, stable, and maneuverable mobility. The total lock brake simultaneously stops both the swivel section and the wheel, keeping equipment completely stationary during loading, unloading, or when safety demands.
Featuring a 5" x 1.25" Performa rubber wheel with sealed precision ball bearings, this caster supports up to 250 lbs dynamic load capacity per caster and is ANSI ICWM tested for lasting performance and safety. The round tread “donut” profile improves maneuverability in tight spaces, while the Performa wheel delivers shock absorption, debris rejection, chemical resistance, and non-marking floor protection.
Why Choose the Round Tread Performa Wheel with Total Lock Brake?
-
Maximum Stability – Locks both the wheel and swivel section for complete equipment hold
-
Enhanced Maneuverability – Round tread design makes turning and repositioning easier
-
Effortless Mobility – Sealed precision bearings reduce rolling resistance
-
Quiet, Smooth Rolling – Ideal for noise-sensitive or customer-facing environments
-
Floor Protection – Non-marking tread safe for finished and delicate floors
-
Durable Construction – Handles shock, impact, and debris with ease
-
Chemical & Moisture Resistant – Resists water, steam, and cleaning agents
-
Tested for Safety – ANSI ICWM tested for dependable, long-term use
Key Features
-
Wheel Size: 5" x 1.25" Performa round tread with sealed precision ball bearings
-
Capacity: 250 lbs per caster
-
Mounting: 2-1/2" x 3-5/8" top plate
-
Brake Type: Total lock – locks both swivel and wheel movement
-
Rig Type: Colson 2 Series swivel rig – tight raceways for durability and performance
-
Finish: Zinc plated for corrosion resistance
-
Warranty: 3 years
Ideal Applications
-
Medical and laboratory equipment
-
Food service and hospitality carts
-
Industrial and institutional carts
-
Store fixtures and retail displays
-
Maintenance and janitorial equipment
Need a different brake type, rigid version, or mounting style?
We offer the Colson 2 Series Performa wheel casters in both round and flat tread profiles, with side lock brakes, threaded stems, and multiple wheel sizes—contact us for custom builds or volume pricing.
