Colson 2 Series 5" x 1.25" Performa Wheel Swivel Caster with Total Lock Brake – Quiet, Durable, and Floor Protective

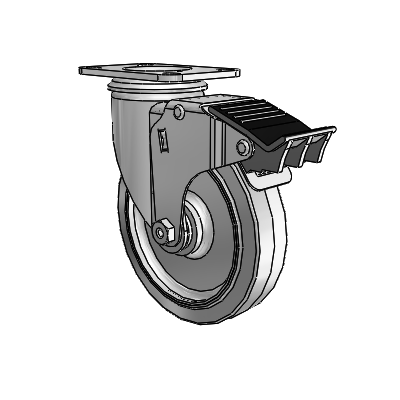

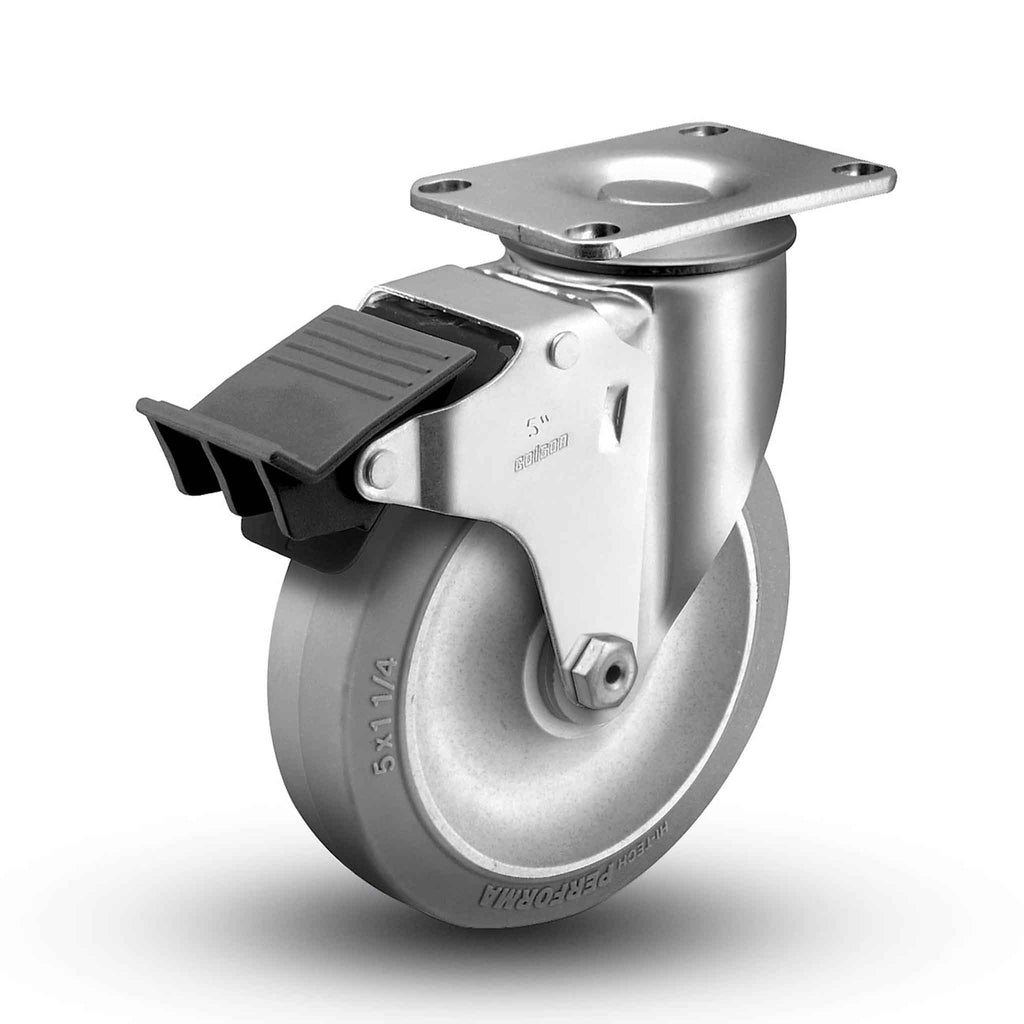

The Colson 2 Series 2.05256.441 BRK5 swivel plate caster combines Colson’s trusted 2 Series rig with the performance of a Performa thermoplastic rubber (TPR) wheel and the security of a total lock brake. Featuring a 5" x 1.25" Performa wheel and a Delrin bearing, this caster supports up to 325 lbs dynamic load capacity and is ANSI ICWM tested for proven safety and performance in industrial, institutional, and commercial environments.
The total lock brake simultaneously locks both the wheel and swivel section, preventing any rolling or rotation—ideal for maximum stability during loading, unloading, or stationary use. The Delrin bearing offers a grease-free, maintenance-free solution perfect for washdown or moisture-prone environments, with no lubrication to wash out. Colson’s Performa wheel delivers superior shock absorption, debris rejection (including metal shavings), chemical resistance, and quiet, floor-protective operation.
Why Choose the Performa Wheel with Total Lock Brake?
-
Complete Stability – Locks both wheel and swivel for maximum equipment control
-
Quiet, Smooth Rolling – Non-marking and ideal for noise-sensitive environments
-
Maintenance-Free Bearing – Delrin design excels in washdown applications
-
Durable Construction – Handles shock, impact, and debris with ease
-
Chemical & Moisture Resistant – Resistant to water, steam, and cleaning agents
-
Tested for Safety – ANSI ICWM tested for lasting performance
Key Features
-

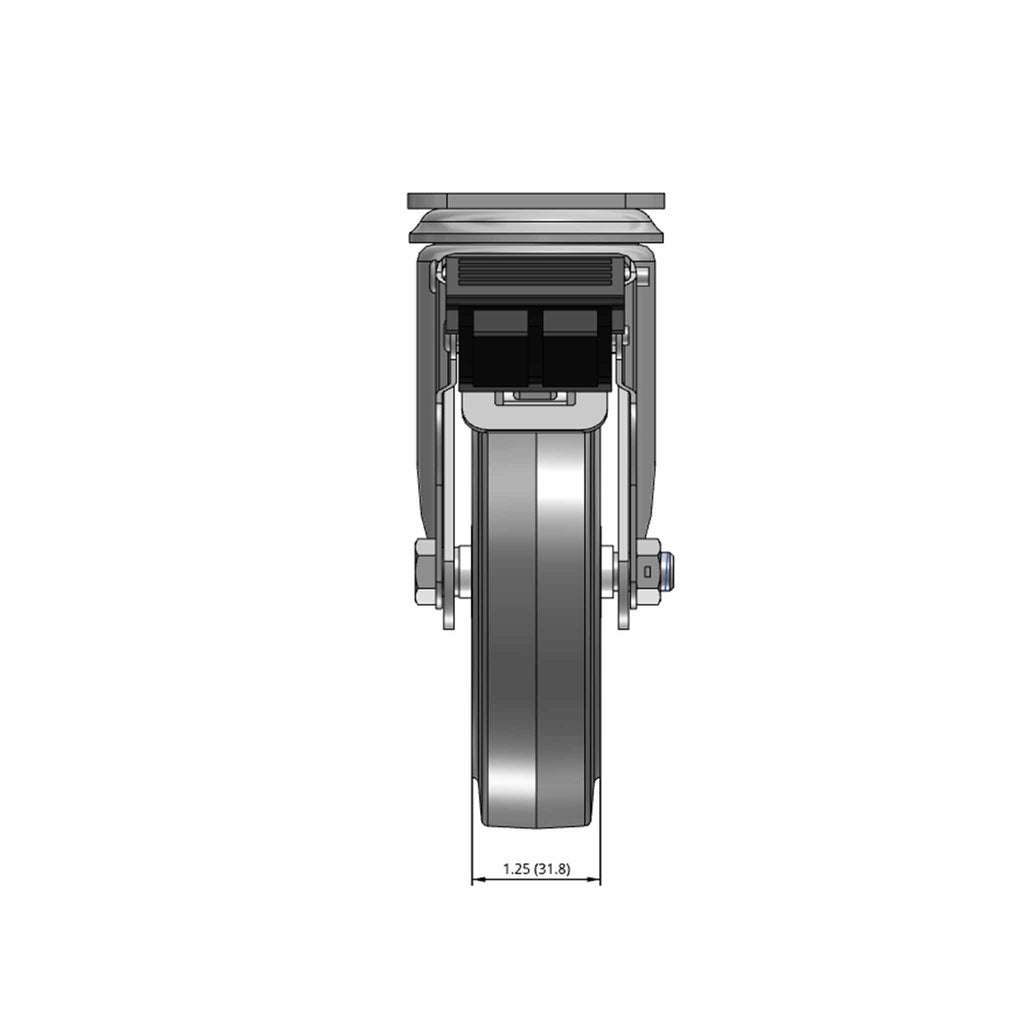

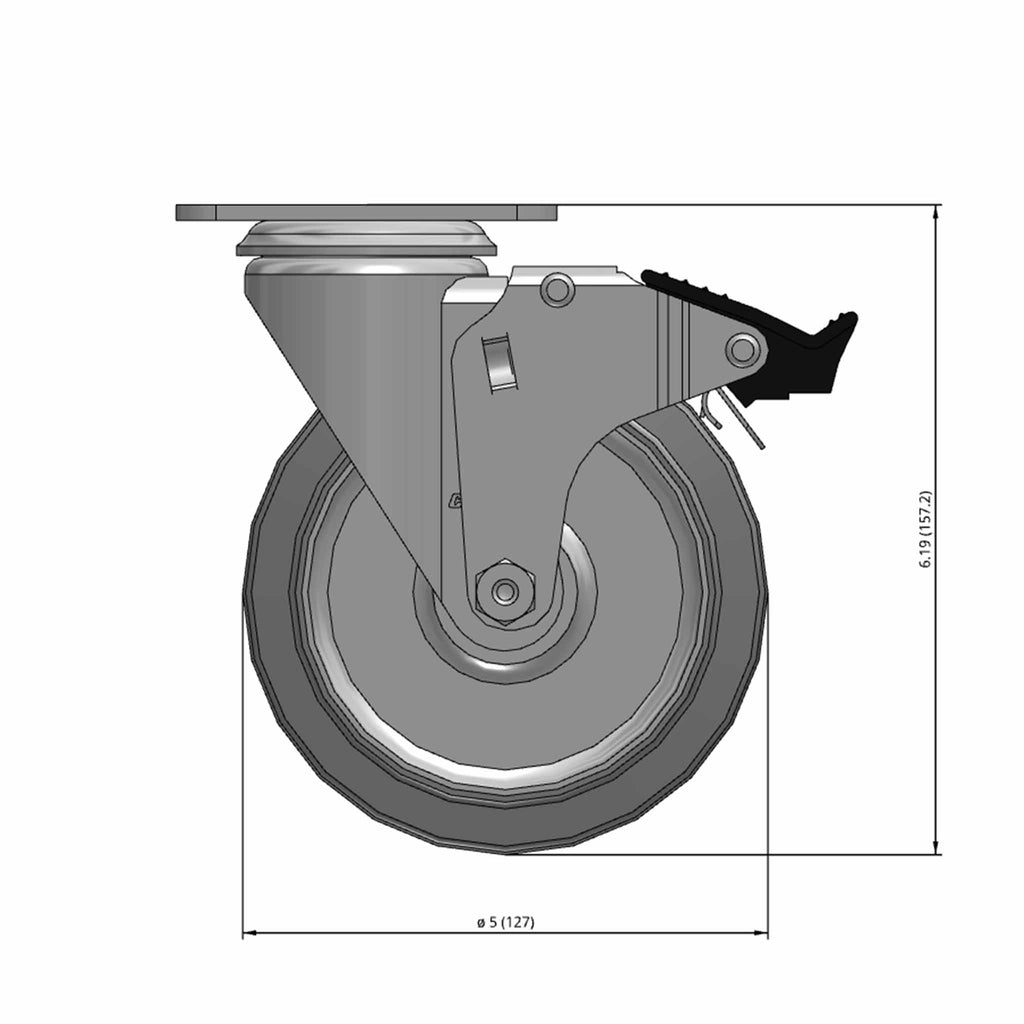

Wheel Size: 5" x 1.25" Performa TPR with Delrin bearing
-
Capacity: 325 lbs per caster
-

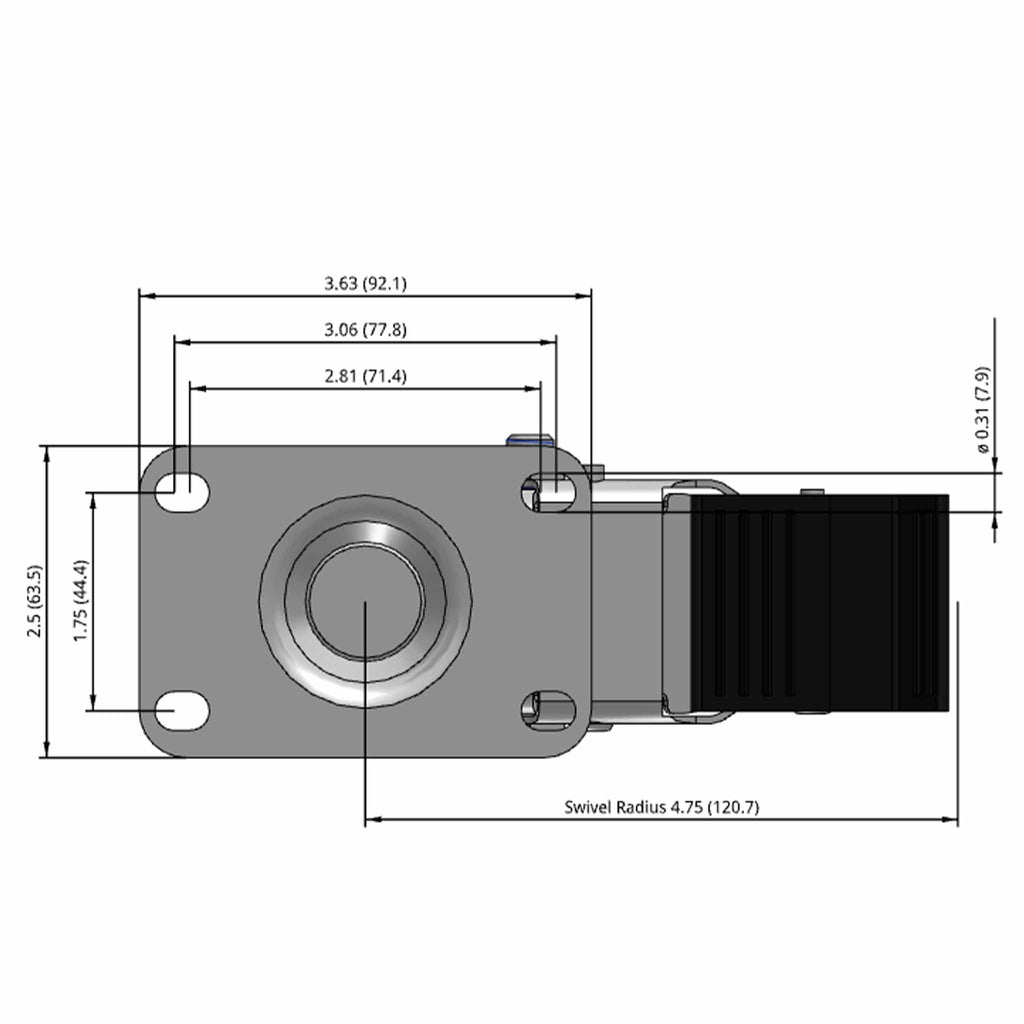

Mounting: 2-1/2" x 3-5/8" top plate
-
Brake Type: Total lock – locks both wheel and swivel simultaneously
-
Rig Type: Colson 2 Series swivel rig – precision raceways for performance and durability
-
Finish: Zinc plated for corrosion resistance
-
Warranty: 3 years
Ideal Applications
-
Food service and hospitality carts
-
Medical and laboratory equipment
-
Institutional and industrial carts
-
Store fixtures and retail displays
-
Washdown or moisture-prone environments
Need this caster without a brake or with a side lock?
We offer the Colson 2 Series in multiple wheel materials, sizes, brakes, and mounting styles—contact us for custom builds or volume pricing.
