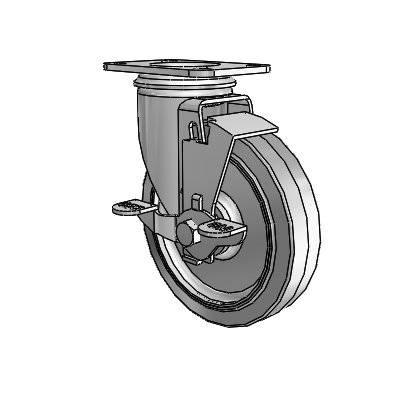

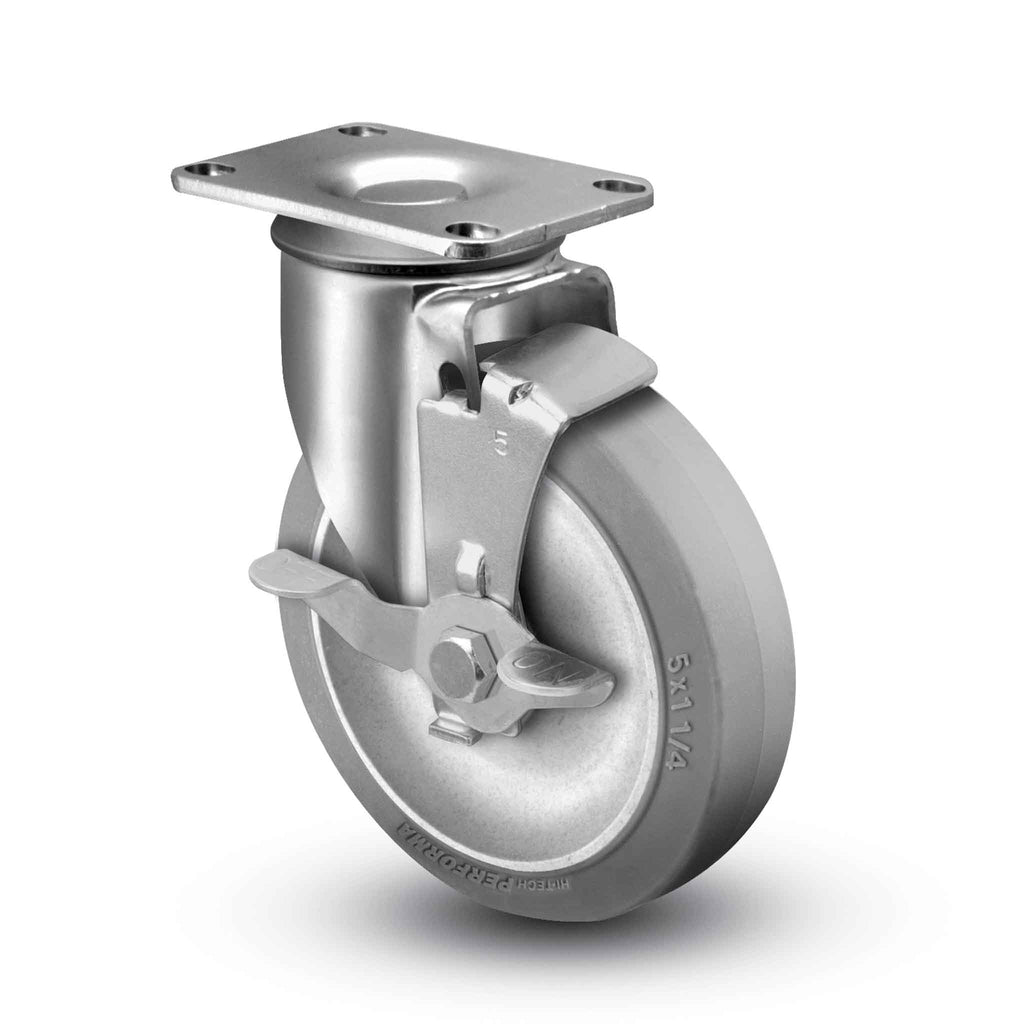

Colson 2 Series 5" x 1.25" Performa Wheel Swivel Caster with Side Lock Brake – Quiet, Durable, and Floor Protective
The Colson 2 Series 2.05256.441 BRK1 swivel plate caster combines Colson’s trusted 2 Series rig with the proven performance of a Performa thermoplastic rubber (TPR) wheel and the safety of a side lock brake. Featuring a 5" x 1.25" Performa wheel and a Delrin bearing, this caster supports up to 325 lbs dynamic load capacity and is ANSI ICWM tested for lasting performance and safety in industrial, institutional, and commercial environments.
The side lock brake quickly and securely locks the wheel in place, making it ideal for loading, unloading, and stationary positioning. The Delrin bearing provides a maintenance-free, grease-free solution, perfect for washdown or moisture-prone areas. Colson’s Performa wheel outperforms standard TPR and rubber wheels—offering quiet operation, floor protection, debris rejection (including metal shavings), chemical resistance, and long service life.
Why Choose the Performa Wheel with Side Lock Brake?
-
Added Safety – Side lock brake keeps equipment securely in place
-
Quiet, Smooth Rolling – Non-marking wheel reduces noise for operator comfort
-
Maintenance-Free Bearing – Delrin design excels in washdown environments
-
Durable Construction – Handles shock, impact, and debris with ease
-
Chemical & Moisture Resistant – Resists water, steam, and cleaning agents
-
Tested for Safety – ANSI ICWM tested for dependable performance
Key Features
-

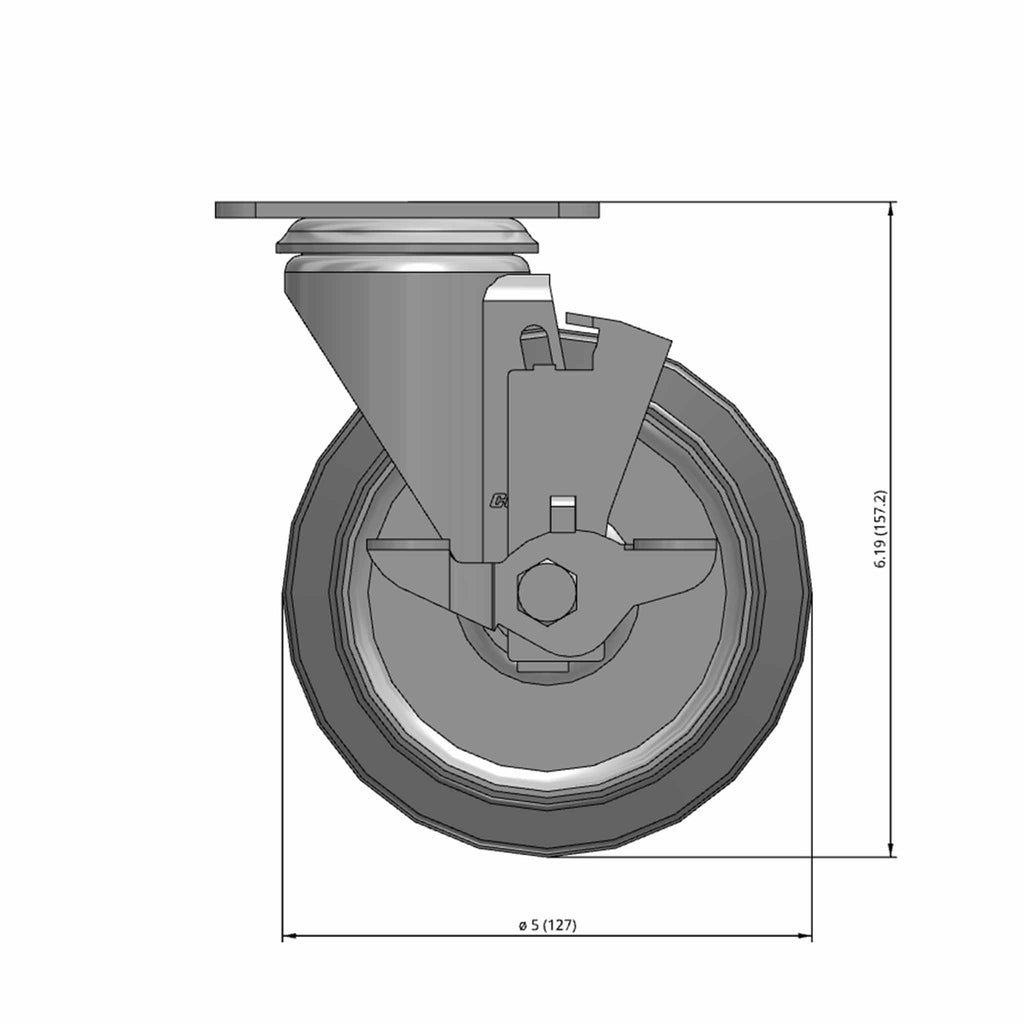

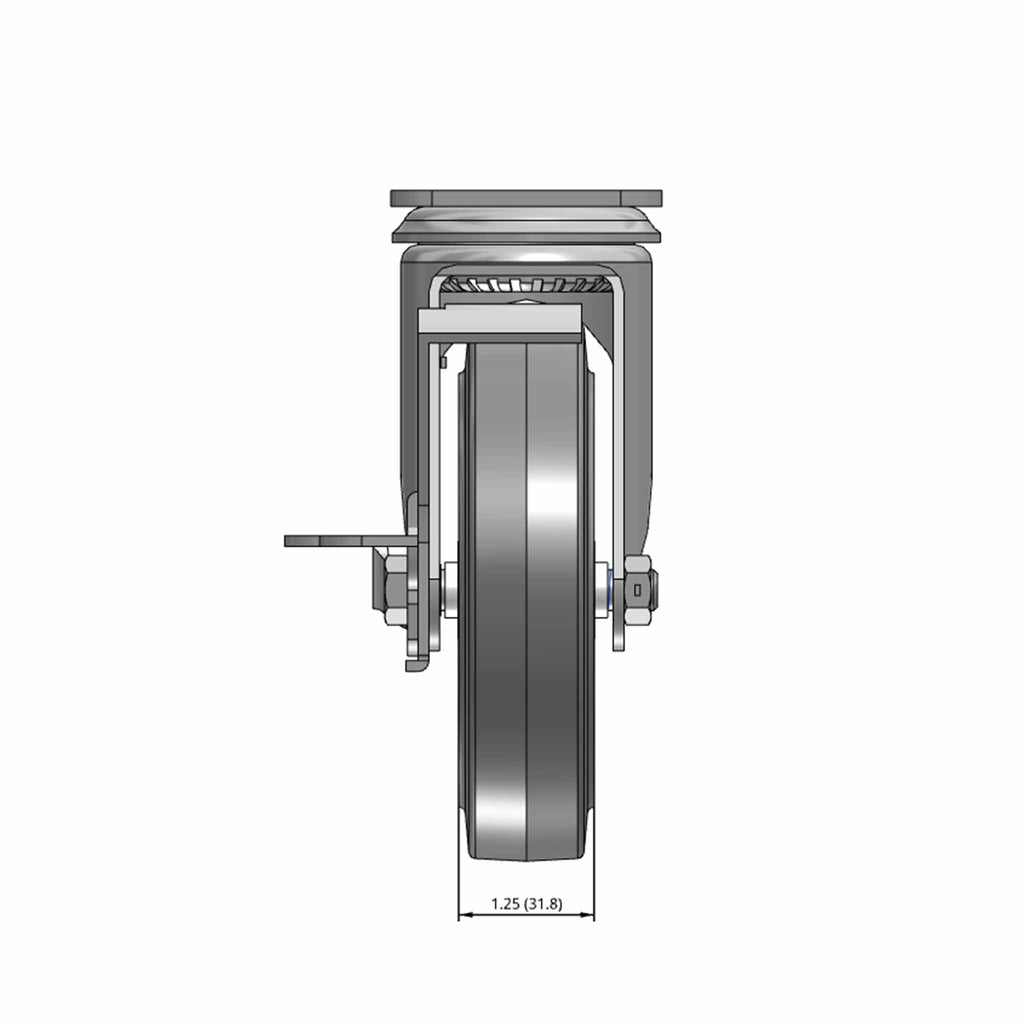

Wheel Size: 5" x 1.25" Performa TPR with Delrin bearing
-
Capacity: 325 lbs per caster
-

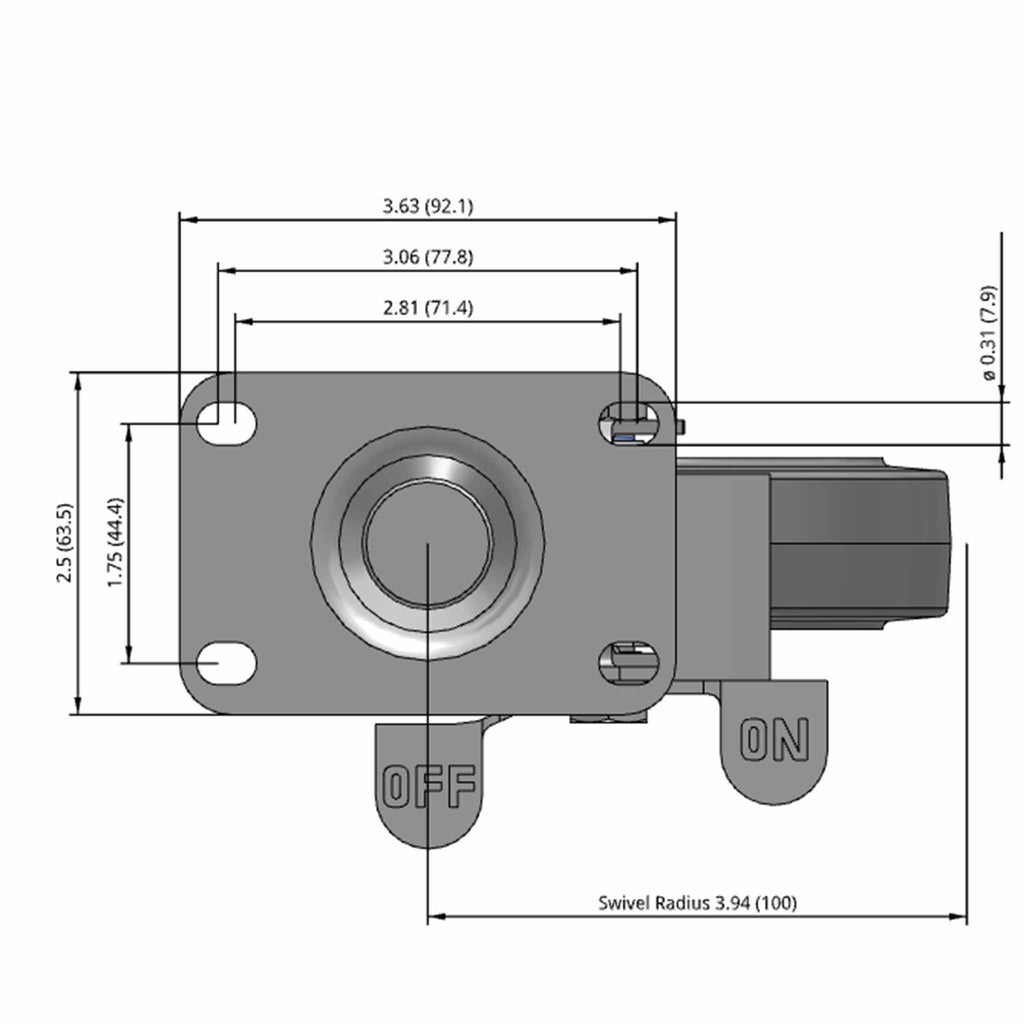

Mounting: 2-1/2" x 3-5/8" top plate
-
Brake Type: Side lock – quick and reliable wheel locking
-
Rig Type: Colson 2 Series swivel rig – precision raceways for performance and durability
-
Finish: Zinc plated for corrosion resistance
-
Warranty: 3 years
Ideal Applications
-
Food service and hospitality carts
-
Medical and laboratory equipment
-
Institutional and industrial carts
-
Store fixtures and retail displays
-
Washdown or moisture-prone environments
Need this caster without a brake or with a total lock option?
We offer the Colson 2 Series Performa wheel casters in multiple sizes, brakes, and mounting styles—contact us for custom builds or volume pricing.
