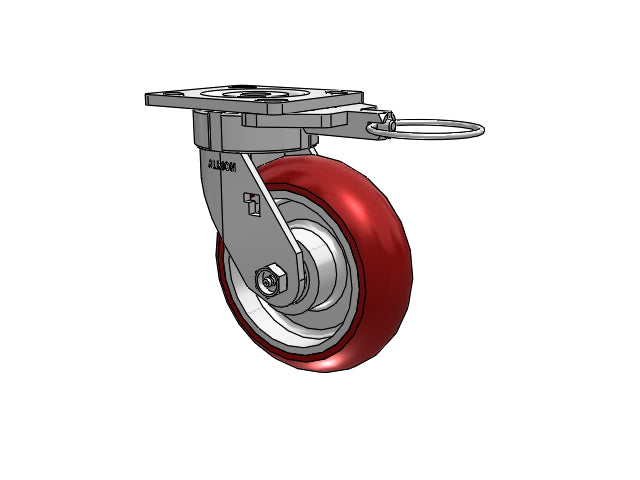

The Albion 18AX06228SL swivel caster features a 6" x 2" wide wheel and a 4-1/2'' x 4'' top plate, capable of a 1250 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Increase efficiency and safety while reducing noise in your facility! This ergonomically designed series provides effortless and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operators safer and improving operating efficiency. This series also supports many towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• Top Plate & Yoke Base: Cold formed from 1/4" steel plate. The yoke base is notched for factory or field-installable 4-position swivel lock
• Swivel Section: Precision sealed ball bearing eliminates the need for routine maintenance
• Legs: 1/4" steel, formed to increase strength and welded on inside and outside of yoke base (swivel only)
• Axle: 1/2" diameter solid axle with Lock Nut
• Maintenance Free: Lubrication unnecessary with maintenance-free swivel section and wheel bearing design
• Finish: All parts, except the wheel, are zinc plated for lasting performance
