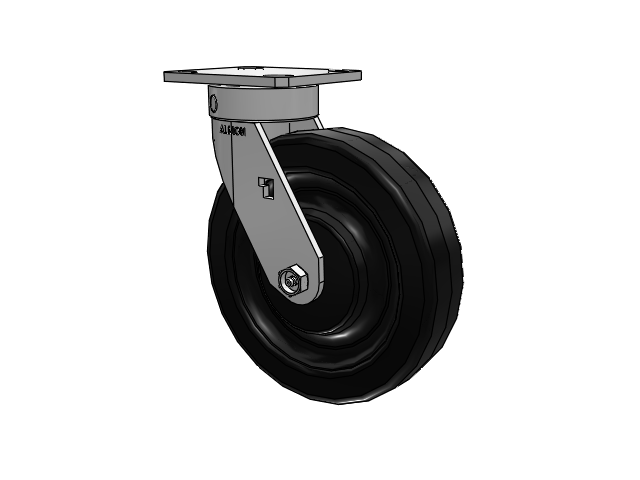

9.5" Height Value Kingpinless 8"x2" Phenolic Wheel Caster with 4"x4.5" Plate

Roll over to zoom; image may be representative for size Click on image to zoom

9.5" Height Value Kingpinless 8"x2" Phenolic Wheel Caster with 4"x4.5" Plate

Name: 9.5" Height Value Kingpinless 8"x2" Phenolic Wheel Caster with 4"x4.5" Plate
Brand: Albion Casters
SKU: 170TM08201S01
Price: 114.4 USD
Availability: InStock

Albion Casters SKU: 170TM08201S01
Fastening: 4 1/2" x 4" top plate | Load Capacity: 1400 lb
Mount Height: 9.5 in | Swivel Radius: 6.25 in
See "Product Details" and below CAD model for full specs.

Ships In: 5-10 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:

$114.40

Quantity:

Share this product

The Albion 170TM08201S01 swivel caster features a 8" x 2" wide wheel and a 4 1/2" x 4" top plate, capable of a 1400 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Ideal for economical applications where standard kingpin casters simply will not hold up due to shock or impact. One-year standard warranty featuring economical wheel solutions. Also, explore our premium 3-year warranty 75 Series kingpinless offering featuring additional performance wheels and brake options.

• 1-Year standard warranty
• Top Plate: 5/16" AISI 1045 steel
• Yoke Base: Notched AISI 1045 steel
• Swivel Section: One row of 3/8" ball bearings are mounted in a heat-treated precision machined 2-3/8" diameter raceway; zerk in swivel section
• Axle: 1/2" diameter hollow axle with zerk fitting on roller and tapered bearing models (Solid axle on Delrin, precision ball, and Oilex models)
• Finish: Zinc plating
• Alternate or custom caster configurations available

Load Capacity:	1400 lb
Mounting Height:	9.5 in
Wheel Tread Width:	2 in
Wheel Description:	TM - Phenolic
Wheel Color:	Black Phenolic Resin
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	Rockwell 102 E
Wheel Thread Guards:	None
Fastening:	4 1/2" x 4" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	6.25 in
Raceway Type:	Kingpinless construction with one row of 3/8" ball bearings mounted in a heat-treated precision machined 2-3/8" diameter raceway with zerk
Brake:	None
Swivel Lock:	None
Toe Guard:	None
Finish:	Zinc
Operating Temperature Range:	-65°F to +250°F (+300°F intermittent)
Mfg:	170TM08201S01
Warranty:	1 year
SKU	170TM08201S01
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

9.5" Height Value Kingpinless 8"x2" Phenolic Wheel Caster with 4"x4.5" Plate

Description

Product Details

Load Capacity:

1400 lb

Mounting Height:

9.5 in

Wheel Tread Width:

2 in

Wheel Description:

TM - Phenolic

Wheel Color:

Black Phenolic Resin

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

Rockwell 102 E

Wheel Thread Guards:

None

Fastening:

4 1/2" x 4" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

6.25 in

Raceway Type:

Kingpinless construction with one row of 3/8" ball bearings mounted in a heat-treated precision machined 2-3/8" diameter raceway with zerk

Brake:

None

Swivel Lock:

None

Toe Guard:

None

Finish:

Zinc

Operating Temperature Range:

-65°F to +250°F (+300°F intermittent)

Mfg:

170TM08201S01

Warranty:

1 year

SKU

170TM08201S01

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
