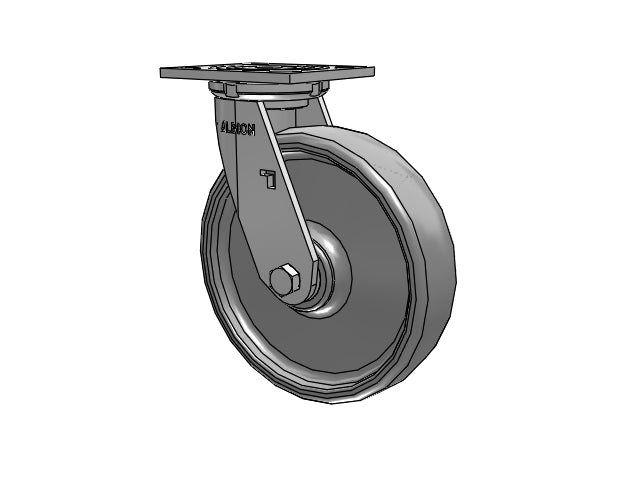

USA 8"x2" Solid Elastomer Wheel Caster with 4"x4.5" Plate

Albion Casters SKU: 16SE08228S
No reviews

Request QuoteShop Similar Casters

Description

The Albion 16SE08228S swivel caster features a 8" x 2" wide wheel and a 4-1/2'' x 4'' top plate, capable of a 1200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This industry favorite caster series features a USA-made rig and a 3-year warranty, along with the most wheel and brake options in the industry. This quality lineup provides lasting value at a competitive price, with swivel models featuring a larger ¾” kingpin that lasts 40% longer than leading imports with a 5/8” kingpin.

• All caster rigs and many wheels are made in the USA with a 3-Year warranty
• Improved zinc-plated finish for an attractive appearance, better corrosion resistance, and longer caster life
• Bigger kingpin: New stronger ¾” kingpin provides 40% longer rig life than leading imports with a 5/8” kingpin
• Top Plate & Yoke Base: Cold formed from 1/4" steel plate. The yoke base is notched for factory or field-installable 4-position swivel lock
• Swivel Section: Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
• Fork Legs: 1/4" steel, formed to increase strength and welded to yoke base
• Axle: 1/2" diameter hollow axle complete with lock nut for roller bearing and Delrin models. Axle is solid for precision ball-bearing models
• Wheel seals: Nylon seal retaining/thrust washers
• Lubrication: Zerk fitting in the swivel section and in the recessed head of hollow axle models

SKU
16SE08228S
Caster Type
Swivel
Raceway Type
Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
Brake
None
Load Capacity
1200 lb
Wheel Tread Width
2 in
Wheel Description
SE - Solid Elastomer
Wheel Color
Grey Elastomer
Wheel Bearing
Precision Ball
Wheel Profile
Crowned Tread
Wheel Hardness
63(±5) Shore D
Wheel Thread Guards
None
Fastening
4-1/2'' x 4'' top plate
Bolt Hole Pattern
2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended
3/8"
Mounting Height
9.5 in
Swivel Radius
5.75 in
Operating Temperature Range
Up to +230°F
Warranty
3 year
Manufacturing Number
16SE08228S
Conformity
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
