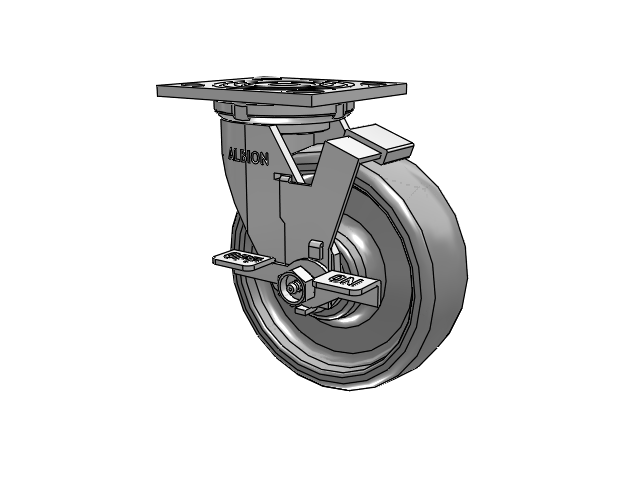

The Albion 16SE06228SFBA swivel caster with Side Locking brake features a 6" x 2" wide wheel and a 4-1/2'' x 4'' top plate, capable of a 1100 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This industry favorite caster series features a USA-made rig and a 3-year warranty, along with the most wheel and brake options in the industry. This quality lineup provides lasting value at a competitive price, with swivel models featuring a larger ¾” kingpin that lasts 40% longer than leading imports with a 5/8” kingpin.
• All caster rigs and many wheels are made in the USA with a 3-Year warranty
• Improved zinc-plated finish for an attractive appearance, better corrosion resistance, and longer caster life
• Bigger kingpin: New stronger ¾” kingpin provides 40% longer rig life than leading imports with a 5/8” kingpin
• Top Plate & Yoke Base: Cold formed from 1/4" steel plate. The yoke base is notched for factory or field-installable 4-position swivel lock
• Swivel Section: Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
• Fork Legs: 1/4" steel, formed to increase strength and welded to yoke base
• Axle: 1/2" diameter hollow axle complete with lock nut for roller bearing and Delrin models. Axle is solid for precision ball-bearing models
• Wheel seals: Nylon seal retaining/thrust washers
• Lubrication: Zerk fitting in the swivel section and in the recessed head of hollow axle models
SKU
|
16SE06228SFBA
|
Caster Type
|
Swivel
|
Raceway Type
|
Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
|
Brake
|
FBA Face Brake (FBA)
|
Load Capacity
|
1100 lb
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
SE - Solid Elastomer
|
Wheel Color
|
Grey Elastomer
|
Wheel Bearing
|
Precision Ball
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
63(±5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
4-1/2'' x 4'' top plate
|
Bolt Hole Pattern
|
2-5/8" x 3-3/8" slotted to 3" x 3"
|
Bolt Size Recommended
|
3/8"
|
Mounting Height
|
7.25 in
|
Swivel Radius
|
4.75 in
|
Operating Temperature Range
|
Up to +230°F
|
Warranty
|
3 year
|
Manufacturing Number
|
16SE06228SFBA
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
