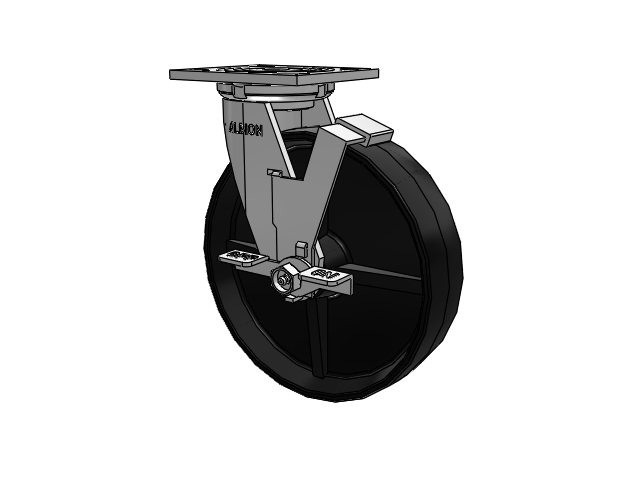

The Albion 16PB08251SFBA swivel caster with Side Locking brake features a 8" x 2" wide wheel and a 4-1/2'' x 4'' top plate, capable of a 900 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This industry favorite caster series features a USA-made rig and a 3-year warranty, along with the most wheel and brake options in the industry. This quality lineup provides lasting value at a competitive price, with swivel models featuring a larger ¾” kingpin that lasts 40% longer than leading imports with a 5/8” kingpin.
• All caster rigs and many wheels are made in the USA with a 3-Year warranty
• Improved zinc-plated finish for an attractive appearance, better corrosion resistance, and longer caster life
• Bigger kingpin: New stronger ¾” kingpin provides 40% longer rig life than leading imports with a 5/8” kingpin
• Top Plate & Yoke Base: Cold formed from 1/4" steel plate. The yoke base is notched for factory or field-installable 4-position swivel lock
• Swivel Section: Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
• Fork Legs: 1/4" steel, formed to increase strength and welded to yoke base
• Axle: 1/2" diameter hollow axle complete with lock nut for roller bearing and Delrin models. Axle is solid for precision ball-bearing models
• Wheel seals: Nylon seal retaining/thrust washers
• Lubrication: Zerk fitting in the swivel section and in the recessed head of hollow axle models
