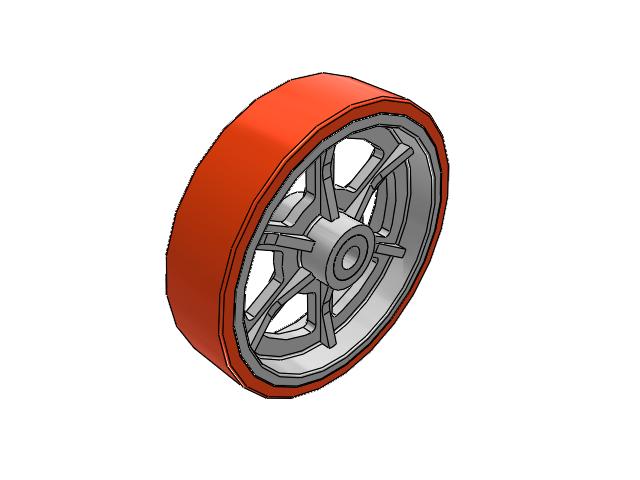

Albion Casters PX Polyurethane on Cast Iron 16" x 4" Orange tread on Silver core Wheel
Albion PX Thick Tread Polyurethane on Cast Iron Wheels – Premium USA-Made, Towable, and Floor Protective The Albion PX Series is the heavy-duty upgrade to the PY wheel, designed with a 1" thick polyurethane tread for maximum durability, floor protection, and ergonomic performance. Made in the USA and engineered for both manual and towline applications, PX wheels combine a precision-machined cast iron core with a chemically bonded polyurethane tread—delivering unmatched reliability and service life in the most demanding environments.
-
Bearings: Straight Roller for smooth, low‑maintenance rolling.
-
Temperature Range: -40°F to +180°F
-
Hardness: 80 Shore A
-
Size: 16" x 4" tread.
-
Color: Orange tread on Silver core
Specifications
-
Dynamic Load Capacity: 5256.0 lb
-
Bearing ID: 1-1/4"
-
Wheel Bore: 2-7/16"
-
Hub Length: 5-1/4"
-
Wheel Diameter: 16"
-
Tread Width: 4"
-
Temperature Range: -40°F to +180°F
-
Hardness: 80 Shore A
-
Part Number: PX167012080A
Tested to ANSI ICWM standards for lasting safety and performance.
