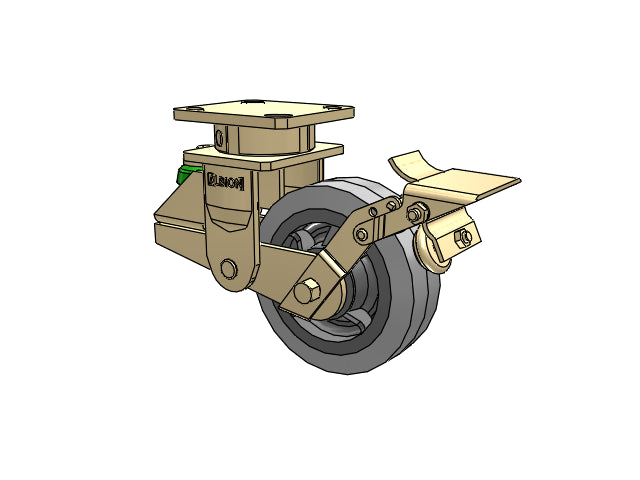

The Albion 141XS06228SB swivel caster with Top Wheel Lock brake features a 6" x 2" wide wheel and a 4 1/2" x 4" top plate, capable of a 600 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Looking for quiet and protective mobility solutions for your plant? This series is a favorite among some of the biggest names in automotive. The unique poly-spring shock absorbing caster has been designed with features tailored to meet the demanding and varied needs of the aviation ground support equipment and automotive industries—but is equally suited for any other abusive and rugged applications. This series is approved for towed applications, however, please consult us prior to ordering to ensure your selection supports your requirements if this is for a towed application.
• Quiet rolling, rugged kingpinless caster rig
• Protects cargo from damaging shocks and unwanted vibration
• Unique polyurethane spring design is durable and corrosion resistant
• Solid spring material features no spring coil where debris can jam spring action
• Yellow Dichromate finish is attractive and features better corrosion resistance compared to zinc plating
• Longer swivel lead allows the caster to index quicker into in-line position for easier movement
SKU
|
141XS06228SB
|
Caster Type
|
Swivel
|
Raceway Type
|
Kingpinless construction with large 3/8" precision machined ball bearing heat-treated raceway with zerk
|
Brake
|
Brake (B)
|
Load Capacity
|
600 lb
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
XS - X-tra Soft Rubber (Flat)
|
Wheel Color
|
Grey Tread on Grey Core
|
Wheel Bearing
|
Precison Ball
|
Wheel Profile
|
Moderate crown
|
Wheel Hardness
|
65-75 Shore A
|
Wheel Thread Guards
|
None
|
Fastening
|
4 1/2" x 4" top plate
|
Bolt Hole Pattern
|
2-5/8" x 3-3/8" slotted to 3" x 3"
|
Bolt Size Recommended
|
3/8"
|
Mounting Height
|
8 in
|
Swivel Radius
|
8.5 in
|
Operating Temperature Range
|
-45°F to +180°F
|
Warranty
|
1 year
|
Manufacturing Number
|
141XS06228SB
|
Conformity
|
Tested to ANSI ICWM:2012 standards for capacity and durability
|
