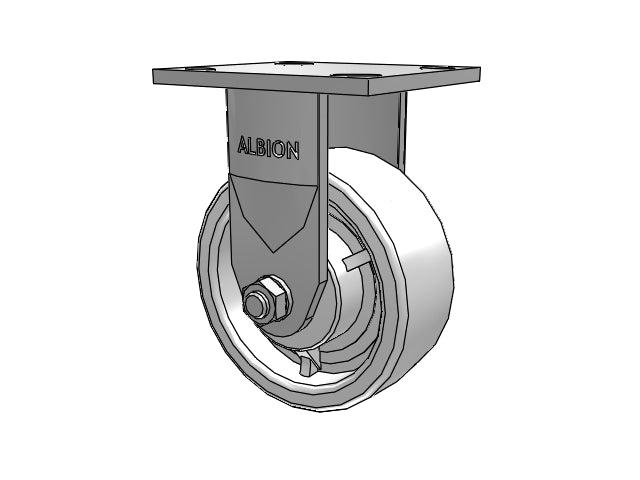

The Albion 120NW05251R rigid caster features a 5" x 2" wide wheel and a 4-1/2" x 4" top plate, capable of a 600 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This trusted heavy-duty caster series is constructed from 304 stainless steel and features a precision machined swivel section that is welded inside and outside to legs for maximum durability. The stainless construction is highly polished and ideal for applications exposed to cleaning agents, washdowns, caustic solutions, steam, marine environments or any other corrosive agents that could cause rust. This series is approved for towed applications, however, please consult us prior to ordering to ensure your selection supports your requirements if this is for a towed application.
• Top Plate: 5/16” 304 stainless steel and welded construction for longer life
• Yoke Base: Notched 304 stainless steel welded inside and out
• Legs: 304 stainless welded inside and out
• Swivel Section: One row of 3/8" ball bearings mounted in a precision machined raceway; zerk in the swivel section
• Axle: 1/2” diameter hollow axle with zerk fitting on roller and tapered bearing models (Solid axle on Delrin, and precision ball models)
• Alternate or custom caster configurations available
