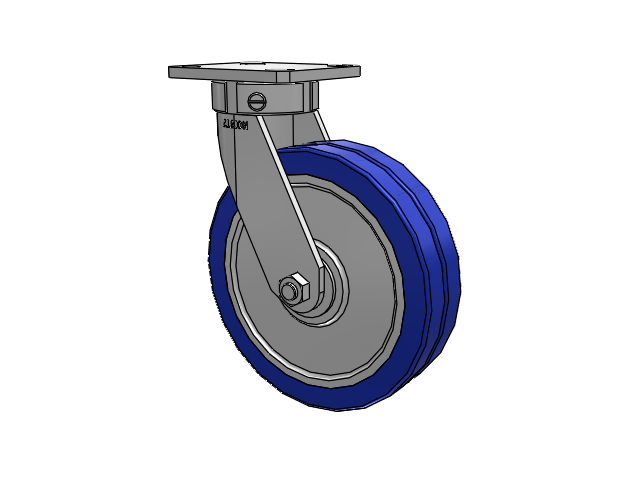

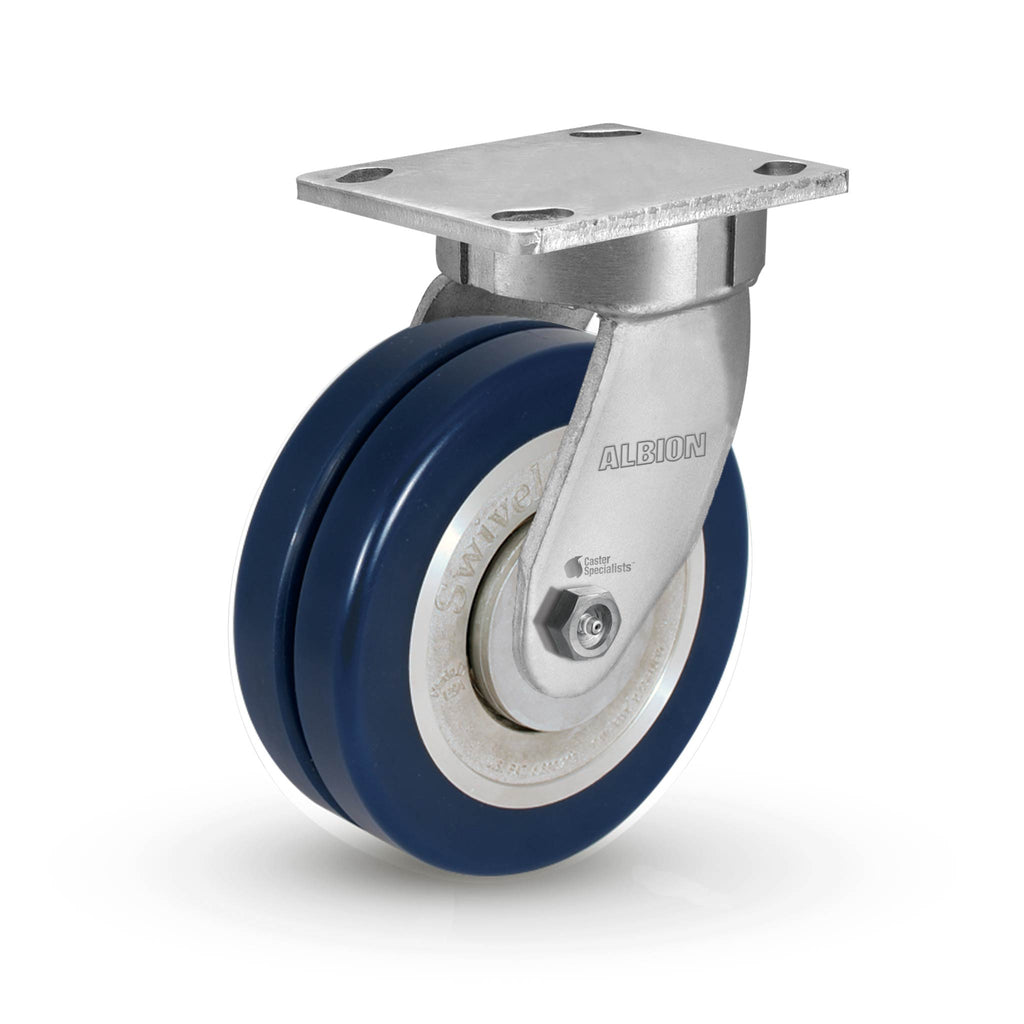

Albion 110EZ08228S 8" x 2" Swivel-EAZ® Kingpinless Swivel Caster – 2,000 lb Capacity
Upgrade your equipment with the Albion 110EZ08228S Swivel-EAZ® kingpinless swivel caster, engineered for maximum load capacity, ergonomic efficiency, and long-lasting durability. This innovative caster features a patented Swivel-EAZ® split tread wheel design—two independent 8" x 1" wheels working together to deliver unmatched swiveling performance, reduce operator fatigue, and improve maneuverability.
With a 2000 lb per caster capacity, this USA-made wheel and rugged 110 Series rig combination is ideal for heavy-duty manually pushed or towed carts in demanding industrial environments. Whether navigating tight spaces or moving heavy loads, you’ll experience 35–50% less push/pull force compared to standard wheels—saving time, reducing strain, and boosting workplace safety.
Why Choose Swivel-EAZ® Wheels?
-
Patented Split Treads – Eliminates the centerline scrubbing common in single-tread wheels, reducing wear and rolling resistance
-
Ergonomic Efficiency – Average 35–50% push/pull force reduction; even greater with Swivel-EAZ® PRO casters
-
Heavy-Duty Performance – Higher load capacity than standard wheels with similar tread hardness
-
Retrofit-Ready – Fits standard 2" and 3" wide caster rigs for easy upgrades
-
Maintenance-Free – 24/7 operation with no lubrication required
-
Proudly Made in the USA
Rugged Albion 110 Series Kingpinless Rig
-
Shock & Impact Resistance – Eliminates the kingpin, the most common failure point in heavy-duty casters
-
Precision-Machined Raceway – Large 3/8" ball bearings in a heat-treated raceway for smooth swiveling under load
-
Industrial-Grade Steel Construction – 5/16" AISI 1045 steel top plate and notched yoke base for maximum strength
-
Corrosion Protection – Zinc-plated finish for durability in challenging environments
-
3-Year Warranty – Backed by 60 years of caster expertise
Specifications
-
Wheel Size: 8" x 2" (two 8" x 1" split tread wheels)
-
Overall Height: 9.5"
-
Top Plate: 4-1/2" x 4"
-
Capacity: 2,000 lbs per caster
-
Axle: 1/2" hollow axle with zerk fitting (solid axle on precision ball bearing models)
-
Bearings: Sealed precision ball bearings for smooth, quiet operation
-
Finish: Zinc-plated steel
-
Model: Albion 110EZ08228S
Ideal Applications
- Material handling carts
- Towline and assembly line dollies
- Warehouse trucks
- High-capacity industrial carts
- Environments with frequent swiveling and tight turns
Need a custom build or volume pricing?
We offer alternate wheels, brakes, and mounting options—contact us for a tailored solution that meets your exact requirements.
