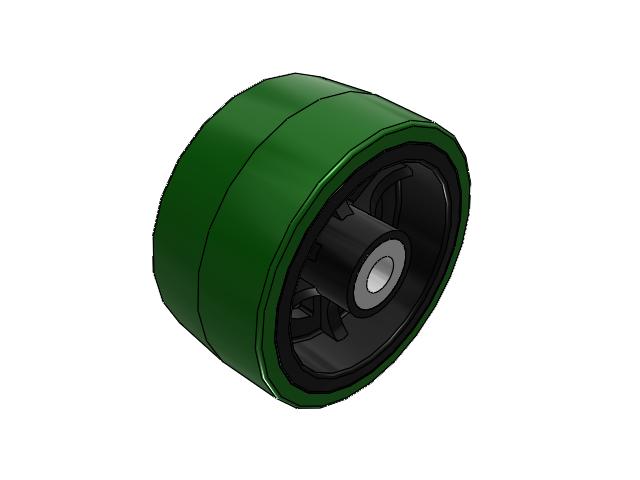

Albion Casters PX Polyurethane on Cast Iron 10" x 5" Green tread on Black core Wheel
Albion PX Thick Tread Polyurethane on Cast Iron Wheels – Premium USA-Made, Towable, and Floor Protective The Albion PX Series is the heavy-duty upgrade to the PY wheel, designed with a 1" thick polyurethane tread for maximum durability, floor protection, and ergonomic performance. Made in the USA and engineered for both manual and towline applications, PX wheels combine a precision-machined cast iron core with a chemically bonded polyurethane tread—delivering unmatched reliability and service life in the most demanding environments.
-
Bearings: Straight Roller for smooth, low‑maintenance rolling.
-
Temperature Range: -40°F to +180°F
-
Hardness: 95 Shore A
-
Size: 10" x 5" tread.
-
Color: Green tread on Black core
Specifications
-
Dynamic Load Capacity: 5500.0 lb
-
Bearing ID: 1-1/4"
-
Wheel Bore: 2-7/16"
-
Hub Length: 5-1/4"
-
Wheel Diameter: 10"
-
Tread Width: 5"
-
Temperature Range: -40°F to +180°F
-
Hardness: 95 Shore A
-
Part Number: PX1080120
Tested to ANSI ICWM standards for lasting safety and performance.
