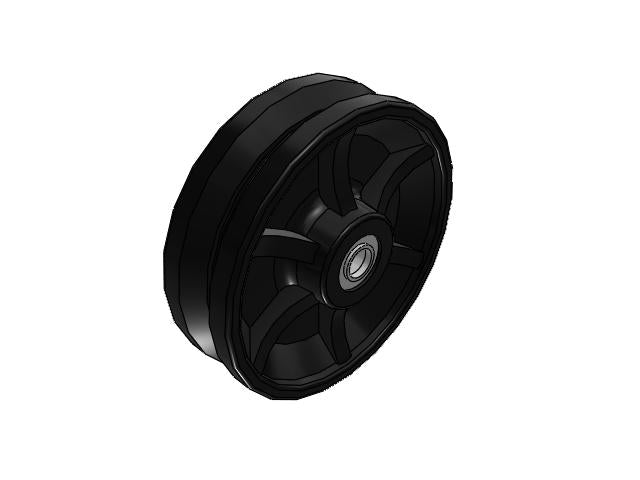

10" x 3" VM Ductile Iron V-Groove Wheel - VM1050916

Albion Casters VM Ductile Iron V-Groove 10" x 3" Black Wheel

Albion VM Ductile V-Groove Wheels – Heavy-Duty Strength with Precision Tracking The Albion VM Series Wheels are the premium V-groove solution for applications requiring higher capacities than standard cast iron V-groove wheels. Made from ductile iron (ASTM A536 grade 65-45-12), these wheels combine exceptional strength, impact resistance, and long service life with the precise guidance of a machined V-groove tread.

• Bearings: Tapered Roller for smooth, low‑maintenance rolling.
• Temperature Range: Up to +350°F
• Hardness: Brinell 131 – 217 (mechanical properties ASTM A536 grade 65-45-12)
• Size: 10" x 3" tread.
• Color: Black

Specifications

• Dynamic Load Capacity: 6000.0 lb
• Bearing ID: 1"
• Wheel Bore: 1-15/16"
• Hub Length: 3-1/2"
• Wheel Diameter: 10"
• Tread Width: 3"
• Temperature Range: Up to +350°F
• Hardness: Brinell 131 – 217 (mechanical properties ASTM A536 grade 65-45-12)
• Part Number: VM1050916

Tested to ANSI ICWM standards for lasting safety and performance.
