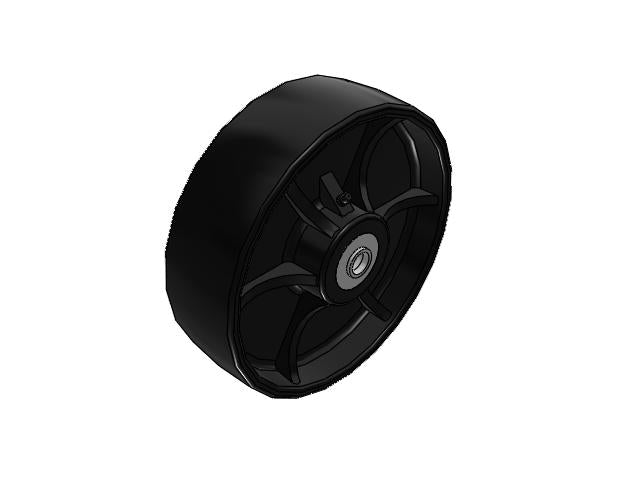

Albion Casters FR Wheels 10" x 3" Black Wheel
Albion FR – Full Radius Ductile Wheels The Albion FR Series Full Radius Ductile Wheels are engineered for maximum strength, durability, and ease of movement in heavy-duty applications. Designed with a full radius tread profile, these wheels roll and swivel with less effort compared to flat-faced ductile or cast iron wheels, reducing operator strain while still delivering exceptional load capacity.
-
Bearings: Tapered Roller for smooth, low‑maintenance rolling.
-
Temperature Range: Up to +800°F
-
Hardness: Brinell 131 – 217 (mechanical properties ASTM A536 grade 65-45-12)
-
Size: 10" x 3" tread.
-
Color: Black
Specifications
-
Dynamic Load Capacity: 6000.0 lb
-
Bearing ID: 3/4"
-
Wheel Bore: 1-15/16"
-
Hub Length: 3-1/2"
-
Wheel Diameter: 10"
-
Tread Width: 3"
-
Temperature Range: Up to +800°F
-
Hardness: Brinell 131 – 217 (mechanical properties ASTM A536 grade 65-45-12)
-
Part Number: FR1050912
Tested to ANSI ICWM standards for lasting safety and performance.
