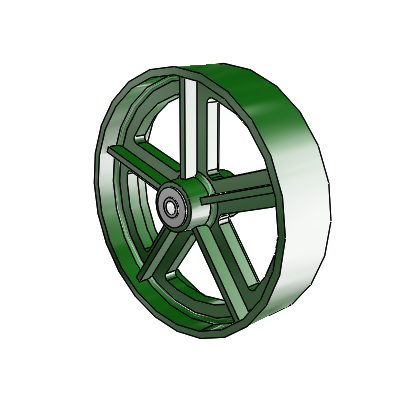

Colson Casters Cast Iron 10" x 2.5" Flat Tread Green tread on Green core Wheel
Colson Cast Iron Wheels – Maximum Strength for Extreme Loads Colson Cast Iron Wheels are the go-to choice when excessive load weights and high impact resistance are required. Built from high-strength cast iron, these wheels can withstand sharp impacts and punishing conditions, making them ideal for heavy-duty material handling equipment.
-
Bearings: Roller for smooth, low‑maintenance rolling.
-
Tread Profile: Flat Tread for predictable tracking.
-
Temperature Range: -45°F to +500°F
-
Hardness: Brinell 145
-
Size: 10" x 2.5" tread.
-
Color: Green tread on Green core
Specifications
-
Dynamic Load Capacity: 1600.0 lb
-
Bearing ID: 0.7500"
-
Wheel Bore: 1.1875"
-
Hub Length: 1.1875"
-
Wheel Diameter: 10"
-
Tread Width: 2.5"
-
Temperature Range: -45°F to +500°F
-
Hardness: Brinell 145
-
Part Number: 6.00010.169
Tested to ANSI ICWM standards for lasting safety and performance.
