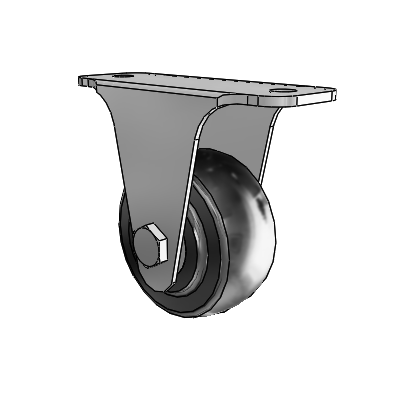

Colson 1.02210.55 caster is a heavy duty caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
1.02210.55
|
Caster Type
|
Rigid
|
Brake
|
None
|
Wheel Description
|
Hard Rubber
|
Wheel Color
|
Black
|
Wheel Bearing
|
Ball
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
75(+/-5) Shore D
|
Fastening
|
1-1/4" x 3-1/4" Top Plate
|
Bolt Hole Pattern
|
5/8" x 2-1/2"
|
Bolt Size Recommended
|
17/64"
|
Operating Temperature Range
|
-20F to +160F
|
Warranty
|
3 year
|
Manufacturing Number
|
1.02210.55
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
