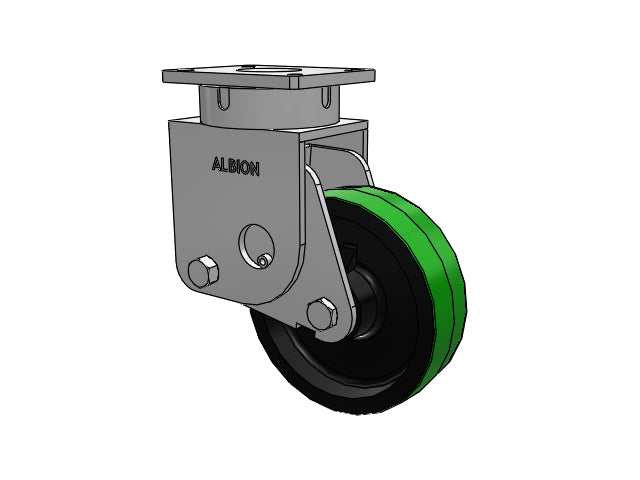

Spring-Loaded Kingpinless 10"x3" Poly-on-Iron Caster with 7.5"x6.25" Plate

The Albion S610PY10509S swivel caster features a 10" x 3" wide wheel and a 7 1/2" x 6 1/4" top plate, capable of a 3000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The S610 Series is highly recommended for automotive and aerospace applications. This caster is built to take the punishment of constant swiveling or for service where shock or impact loads might damage less rugged casters. Greater capacity and better shock protection. Noise levels are reduced through the dampening effect of these casters. Capacities are listed at 50% of wheel deflection (21/32"). Total wheel deflection is 1-5/16". The S610 Series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.

• Load Springs: Protect from damaging shocks and reduce noise levels through the dampening effect of the springs
• Top Plate: 1/2" AISI 1045 heat-treated steel welded inside and out for longer life
• Swivel Section: 3/4" ball bearings mounted in a 4-3/8" precision machined raceway; zerk in swivel section
• Yoke Base: Notched AISI 1045 heat-treated steel
• Legs: 3/8" thick steel welded to yoke base using 100,000 psi weld filler
• Axle: 2-1/2" and 3" tread width wheels feature a 3/4" axle, 3-1/2" and 4" tread width wheels feature a 1" axle
• Alternate or custom caster configurations available
