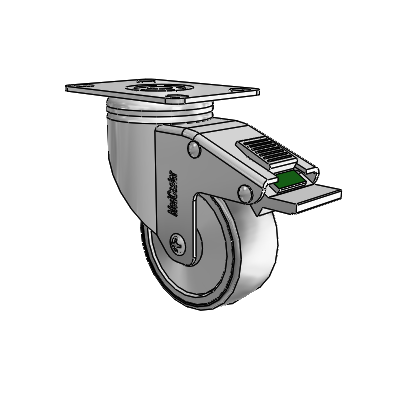

The MedCaster SS-03TPP-125-DL-TP01 swivel caster with Medical Direction Lock brake features a 3" x 1.25" wide wheel and a 2-1/2" x 3-5/8" Top Plate, capable of a 165 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. A popular 1-1/4” wide wheel stainless steel caster series to stand up to the elements and prevent corrosion, constructed of polished 304 stainless steel and featuring dual ball bearing raceways for smooth performance. This design gives you the quality necessary for most medical and pharmaceutical applications at an affordable price. Non-marking grey thermoplastic wheels with precision ball bearings provide smooth and quiet mobility and are easy to roll and turn. Full wheel thread guards will protect your casters from entangling debris. Available in swivel, rigid, total lock, and direction lock models to cover all of your mobility requirements.
• 304 Stainless Steel polished
• Dual Ball Swivel Raceways for added strength
• Total Lock Brake models lock both swivel and wheel
• Directional lock models lock swivel only (helps with Steering)
• Precision ball bearings in wheels for easier rollability
• Wheels have full plastic thread guards for added protection
• Wheels are crowned for easy rolling and turning
SKU
|
SS-03TPP-125-DL-TP01
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways for performance and easy swiveling
|
Brake
|
Direction Lock
|
Load Capacity
|
165 lb
|
Wheel Tread Width
|
1.25 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Precision Ball
|
Wheel Thread Guards
|
Full
|
Fastening
|
2-1/2" x 3-5/8" Top Plate
|
Bolt Hole Pattern
|
1-3/4" x 2-13/16" to 3-1/16"
|
Bolt Size Recommended
|
5/16"
|
Mounting Height
|
4.44 in
|
Swivel Radius
|
4.25 in
|
Warranty
|
1 year
|
Manufacturing Number
|
SS-03TPP-125-DL-TP01
|
