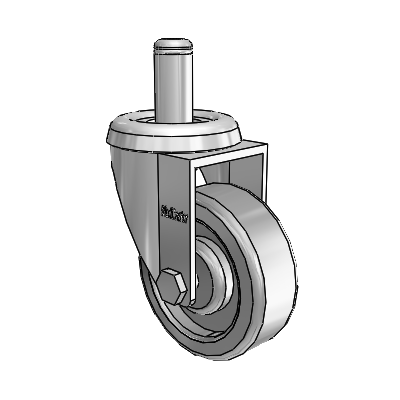

The MedCaster RZ-02TPN-070-SW-GR01 swivel caster features a 2" x 0.75" wide wheel and a 7/16" x 7/8" Grip Ring, capable of a 110 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The Razer (RZ) Series provides economical and decorative total lock and swivel caster solutions—making it very popular for laundry hampers, medical furniture, medical carts, bassinets, light-duty recliners and chairs, and light-duty healthcare beds. With a polished chrome finish, this single-wheel series features non-marking wheels, dual ball bearing raceways for performance and smooth swiveling, and a variety of fastening options.
• Economically priced
• Polished chrome finish for aesthetics, corrosion resistance, and sanitation
• Double ball swivel raceways for added strength and performance
• Total Lock Brake models lock both swivel and wheel
SKU
|
RZ-02TPN-070-SW-GR01
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways for performance and easy swiveling
|
Brake
|
None
|
Load Capacity
|
110 lb
|
Wheel Tread Width
|
0.75 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Plain
|
Wheel Thread Guards
|
Full
|
Fastening
|
7/16" x 7/8" Grip Ring
|
Mounting Height
|
2.75 in
|
Swivel Radius
|
1.95 in
|
Warranty
|
1 year
|
Manufacturing Number
|
RZ-02TPN-070-SW-GR01
|
