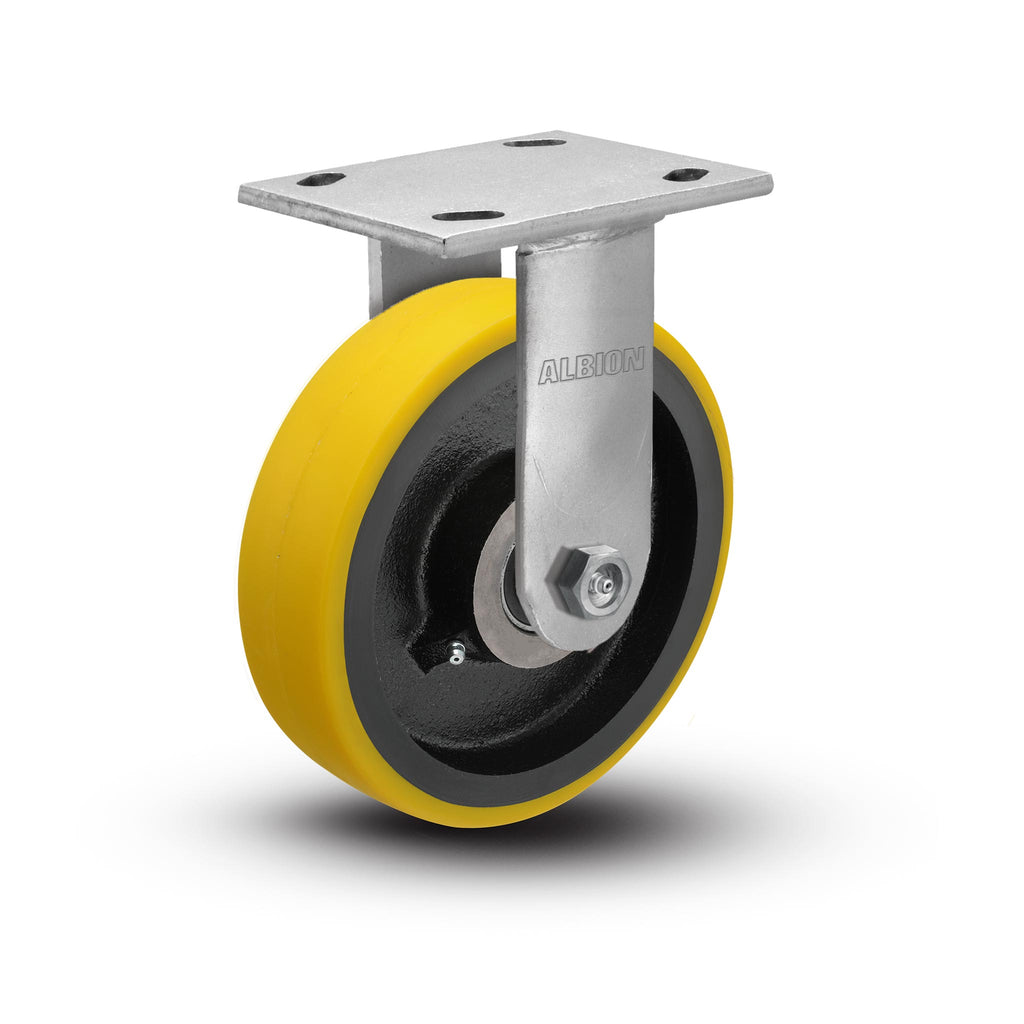

The Albion 110PF08228R01 rigid caster features a 8" x 2" wide wheel and a 4 1/2" x 4" top plate with a 9.5" overall height, capable of a 2000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This trusted kingpinless series features a precision machined large raceway, 5/16" thick AISI 1045 steel top plate, and fully heat-treated construction, making it an the ideal solution for applications exposed to rugged conditions or high amounts of impact and shock. More durable than competitors’ case or induction hardened construction, and longer lasting than conventional kingpin designs. Kingpinless heavy-duty casters are built to handle shock and impact better than traditional kingpin casters, as it eliminates the most common area of caster failure in rugged applications: the kingpin (which can get strained and stretched due to the impact or shock load).
- 3-Year warranty
- Top Plate: 5/16" AISI 1045 steel welded and heat treated for longer life
- Yoke Base: Notched AISI 1045 steel
- Swivel Section: One row of 3/8" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
- Axle: 1/2" diameter hollow axle with zerk fitting on roller and tapered bearing models (Solid axle on precision ball bearing models)
- Finish: Zinc plating
- Alternate or custom caster configurations available
