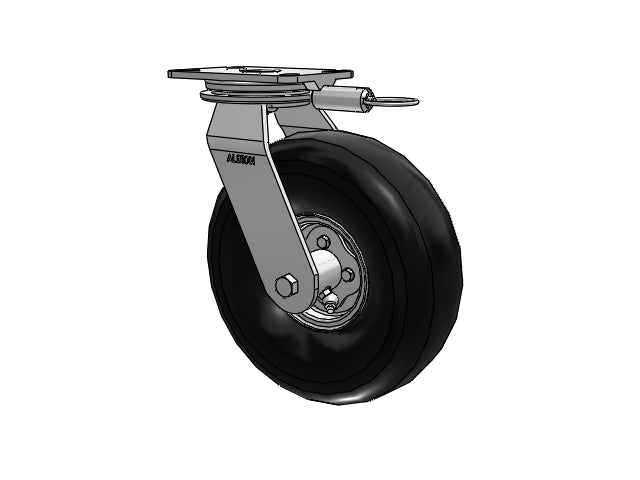

The Albion 72SF10627SL swivel caster features a 10.9" x 4.1" wide wheel and a 6-1/4" x 4-1/2" top plate, capable of a 350 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. 72 Series pneumatic casters are recommended for the greatest possible protection to both load and floor, or for off-road applications. If you transport fragile materials or parts, or if you move delicate instruments over rough floors, you should consider this product offering. Full pneumatics cushion the load on air as does automobile or truck wheels.
• Swivel Casters: Double ball bearing raceway for smooth and reliable swivel
• Shock Absorbing: Cushion wheel protects equipment
• Ball bearing wheel
SKU
|
72SF10627SL
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways with 3-1/4" diameter load race; raceways are coined smooth, then heat treated to minimize ball indentation and wear
|
Brake
|
None
|
Load Capacity
|
350 lb
|
Wheel Tread Width
|
4.1 in
|
Wheel Description
|
Black Pneumatic
|
Wheel Color
|
Black Wheel
|
Wheel Bearing
|
Ball Bearing
|
Wheel Thread Guards
|
None
|
Fastening
|
6-1/4" x 4-1/2" top plate
|
Bolt Hole Pattern
|
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
13 in
|
Swivel Radius
|
8.7 in
|
Warranty
|
1 year
|
Manufacturing Number
|
72SF10627SL
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
