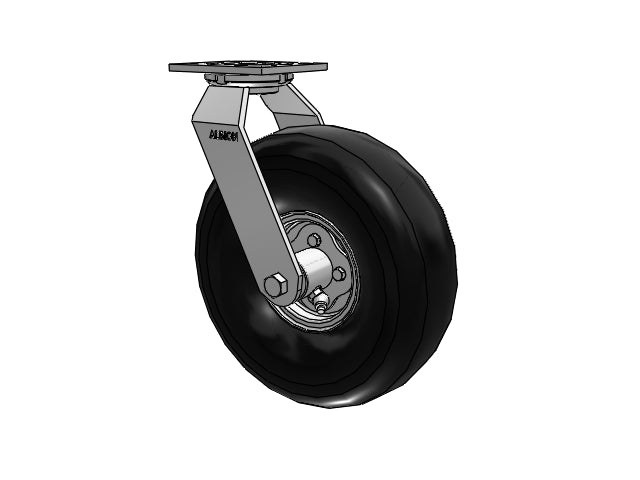

USA-Rig 10.9"x4.1" Black Pneumatic Wheel Caster with 4" x 4-1/2" Plate

Roll over to zoom; image may be representative for size Click on image to zoom

USA-Rig 10.9"x4.1" Black Pneumatic Wheel Caster with 4" x 4-1/2" Plate

Name: USA-Rig 10.9"x4.1" Black Pneumatic Wheel Caster with 4" x 4-1/2" Plate
Brand: Albion Casters
SKU: 16SF10627S
Price: 162.75 USD
Availability: InStock

Albion Casters SKU: 16SF10627S
Fastening: 4" x 4-1/2" top plate | Load Capacity: 350 lb
Mount Height: 13 in | Swivel Radius: 8.7 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-2 weeks **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:

$162.75

Quantity:

Share this product

The Albion 16SF10627S swivel caster features a 10.9" x 4.1" wide wheel and a 4" x 4-1/2" top plate, capable of a 350 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. 16 Series pneumatic casters are recommended for the greatest possible protection to both load and floor, or for off-road applications. If you transport fragile materials or parts, or if you move delicate instruments over rough floors, you should consider this product offering. Full pneumatics cushion the load on air as does automobile or truck wheels.

• Steel Rigs: 16 Series rigs now Made in the USA for added reliability
• Swivel Casters: Double ball bearing raceway for smooth and reliable swivel
• Shock Absorbing: Cushion wheel protects equipment
• Ball bearing wheel

Load Capacity:	350 lb
Mounting Height:	13 in
Wheel Tread Width:	4.1 in
Wheel Description:	Black Pneumatic
Wheel Color:	Black Wheel
Wheel Bearing:	Sealed Precision Ball
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	8.7 in
Raceway Type:	Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear
Brake:	None
Swivel Lock:	None
Toe Guard:	None
Finish:	Zinc
Mfg:	16SF10627S
Warranty:	1 year
SKU	16SF10627S
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

USA-Rig 10.9"x4.1" Black Pneumatic Wheel Caster with 4" x 4-1/2" Plate

Description

Product Details

Load Capacity:

350 lb

Mounting Height:

13 in

Wheel Tread Width:

4.1 in

Wheel Description:

Black Pneumatic

Wheel Color:

Black Wheel

Wheel Bearing:

Sealed Precision Ball

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

8.7 in

Raceway Type:

Smooth-formed, hardened double ball bearing raceways minimize ball indentation and wear

Brake:

None

Swivel Lock:

None

Toe Guard:

None

Finish:

Zinc

Mfg:

16SF10627S

Warranty:

1 year

SKU

16SF10627S

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
