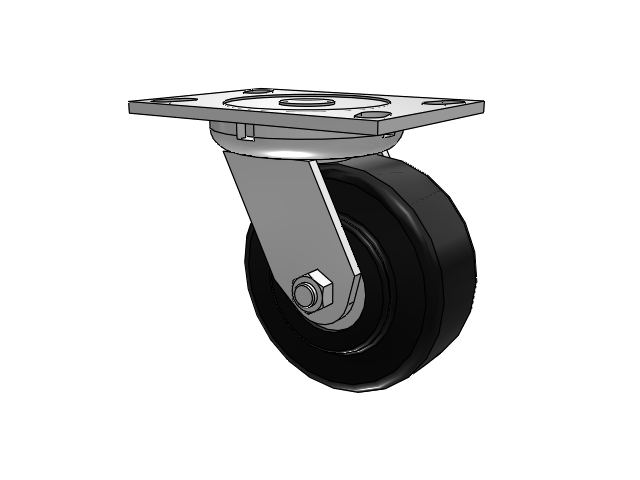

The Albion 62NX04228S swivel caster features a 4" x 2" wide wheel and a 6-1/4'' x 4-1/2'' top plate, capable of a 1500 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Manufactured from cold-formed steel, this popular 2” wide wheel series features a 6.25” x 4.5” top plate and heat-treated king bolt and nut, ensuring durability and a longer caster life.
• 6-1/4” x 4-1/2” Top Plate: Cold-formed from 1/4" steel plate to provide the strongest possible section for swivel bearing
• Swivel Section: 3-1/4" diameter load race. Raceways are coined smooth, then heat treated to minimize ball indentation and wear
• Legs: 1/4" steel formed to increase strength and welded to the yoke base
• King bolt: 3/4" heat-treated king bolt and nut assembly
• Axle: 1/2" diameter hollow axle with recessed zerk fitting and lock nut on roller bearing models; solid axle on ball bearing models
• Lubrication: Zerk fitting in swivel section and in the recessed head of hollow axles
• Finish: All rigs are zinc plated to resist corrosion and rust
• Notched Yoke Base: Notched to accommodate swivel lock
SKU
|
62NX04228S
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways with 3-1/4" diameter load race; raceways are coined smooth, then heat treated to minimize ball indentation and wear
|
Brake
|
None
|
Load Capacity
|
1500 lb
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
NX - Trionix
|
Wheel Color
|
Black Polymer
|
Wheel Bearing
|
Precision Ball
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
78-82 Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
6-1/4'' x 4-1/2'' top plate
|
Bolt Hole Pattern
|
2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
5.63 in
|
Swivel Radius
|
3.31 in
|
Operating Temperature Range
|
-30°F to +220°F
|
Warranty
|
1 year
|
Manufacturing Number
|
62NX04228S
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
