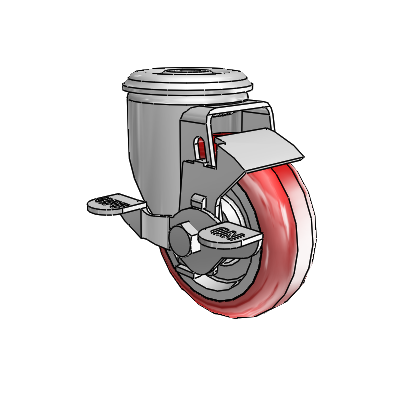

The Colson 2.03250.91 BRK1 swivel caster with Side Locking brake features a 3.5" x 1.25" HI-TECH Polyurethane wheel and a 1/2" Hollow Rivet, capable of a 250 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The Colson 2 Series is an industry leader in premium 1-1/4" wide caster wheel mobility. Commonly utilized in industrial and institutional applications, this leading series provides a standard 3-year warranty, high-quality construction, and some of the most trusted and best-performing wheels in the industry—including the Performa Rubber and HI-TECH Polyurethane wheels. If you are seeking trusted mobility with long-lasting performance wheels, the Colson 2 Series is the solution. That is why you will see it alongside its bigger brother, the 4 Series, throughout airports and other high-usage applications around the US and the rest of the world.
• Full double ball hardened raceways for better performance and greater durability
• “Colson 45” multi-temp grease lubricates in extreme hot and cold temperatures
• Zinc plated finish is attractive and durable
• 3/8" hollow axle with lock nut
• Grease holes on wheel bearing for greater convenience
SKU
|
2.03250.91 BRK1
|
Caster Type
|
Swivel
|
Raceway Type
|
Full double ball hardened raceways for better performance and durability with multi-temp grease for extreme hot and cold temperatures
|
Brake
|
Top Lock Brake (BRK1)
|
Load Capacity
|
250 lb
|
Wheel Tread Width
|
1.25 in
|
Wheel Description
|
HI-TECH Polyurethane
|
Wheel Color
|
Maroon on Grey
|
Wheel Bearing
|
Delrin
|
Wheel Profile
|
Round Tread
|
Wheel Hardness
|
45(+/-5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
1/2" Hollow Rivet
|
Mounting Height
|
4.56 in
|
Swivel Radius
|
3.63 in
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
3 year
|
Manufacturing Number
|
2.03250.91 BRK1
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
