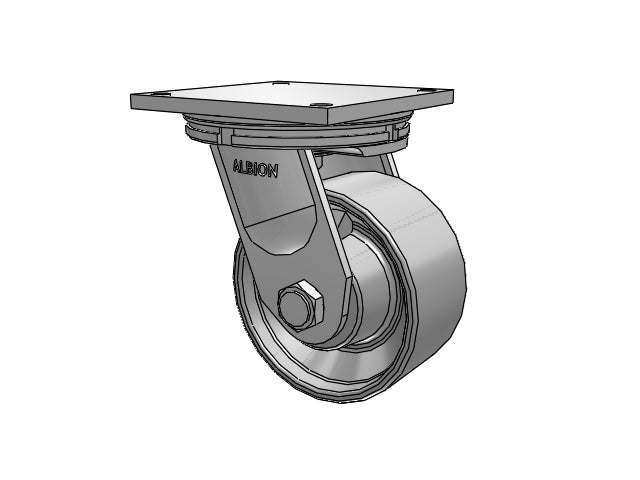

The Albion 95FS08709SBBL swivel caster features a 8" x 4" wide wheel and a 8 1/2" x 8 1/2" top plate, capable of a 8000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This series features swivel casters with a ball load swivel (ball load swivel = “BBL”) that is precision machined and heat treated to provide long life with greater capacity for that very rugged application. Made from AISI 1045 forged steel.
• Top Plate and Yoke Base: 5/8” thick 1045 AISI drop-forged steel for extended use
• Swivel Load Bearings: 7” diameter machined and hardened raceway for smooth movement and extended wear
• Component Thrust Bearing: 1-1/4” tapered roller bearing
• Legs: 1/2” formed steel plate welded inside and out to yoke base
• King Bolt: Integrally forged with top plate
• Axle: 1-1/4” solid axle with locking nut
• Alternate or custom caster configurations available
SKU
|
95FS08709SBBL
|
Caster Type
|
Swivel
|
Raceway Type
|
Swivel load bearing is a 7” diameter machined and hardened raceway for smooth movement and extended wear; component thrust bearing is a 1-1/4” tapered roller bearing
|
Brake
|
None
|
Load Capacity
|
8000 lb
|
Wheel Tread Width
|
4 in
|
Wheel Description
|
FS - Drop-Forged Steel
|
Wheel Color
|
Clear Coat Enamel
|
Wheel Bearing
|
Tapered Roller
|
Wheel Profile
|
Machined flat with rounded edges
|
Wheel Hardness
|
Rockwell 80 B
|
Wheel Thread Guards
|
None
|
Fastening
|
8 1/2" x 8 1/2" top plate
|
Bolt Hole Pattern
|
7" x 7"
|
Bolt Size Recommended
|
5/8"
|
Mounting Height
|
11 in
|
Swivel Radius
|
6.25 in
|
Operating Temperature Range
|
Up to +800°F
|
Warranty
|
1 year
|
Manufacturing Number
|
95FS08709SBBL
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
