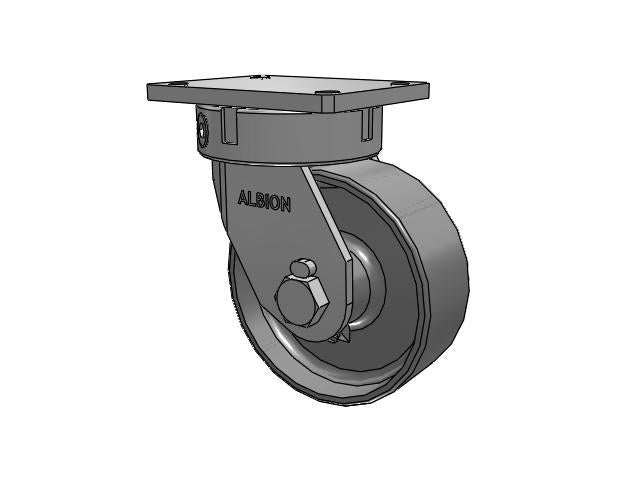

The Albion 610FS08501S swivel caster features a 8" x 3" wide wheel and a 7 1/2" x 6 1/4" top plate, capable of a 5400 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The 610 Series is built to take the punishment of constant swiveling or for service where shock or impact loads would damage less rugged casters. Highly recommended for automotive and aerospace industries. See our 600 Series and 700 Series for enhanced solutions featuring one-piece forgings. The 610 Series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• Top Plate: 1/2" thick AISI 1045 steel precision machined and through-hardened for long life
• Swivel Section: 3/4" ball bearings mounted in a 4-3/8" precision machined raceway; zerk in swivel section
• Legs: 3/8" thick steel welded to yoke base using 100,000 psi weld filler
• Axle: 2-1/2" and 3" tread width wheels feature a 3/4" axle, 3-1/2" and 4" tread width wheels feature a 1" axle
• Alternate or custom caster configurations available
