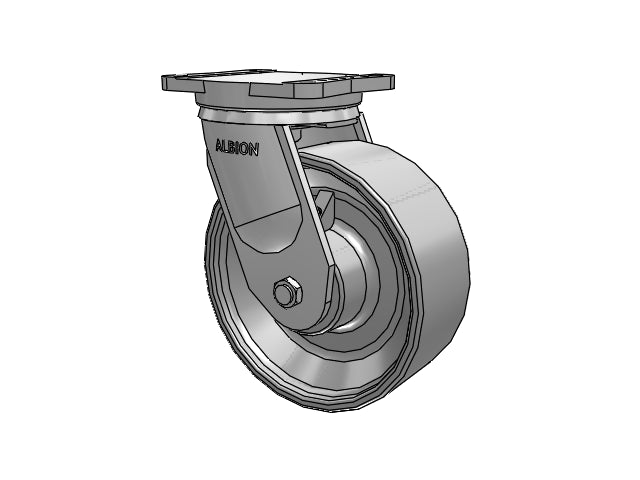

The Albion 94FS10709SBBL swivel caster features a 10" x 4" wide wheel and a 7 1/2" x 6 1/2" top plate, capable of a 5000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This series features swivel casters with a ball load swivel (ball load swivel = “BBL”) that is precision machined and heat treated to provide long life with greater capacity for that very rugged application. Made from AISI 1045 forged steel.
• Top Plate and Yoke Base: 1/2” thick AISI 1045 drop forged steel
• Swivel Load: 5” diameter ball load race with 1/2” steel balls hardened for greater resistance to wear and brinelling. Protected by a forged labyrinth skirt
• Thrust Race: 1-1/4” tapered roller bearing
• Legs: 3/8” formed steel plate welded inside and out to yoke base and rigid top
• King Bolt: 1-1/4” diameter integrally forged with top plate for maximum strength
• Axle: 1” solid axle with lock nut
• Lubrication: Zerk fitting in yoke base and wheel hubs for easy lubrication
• Alternate or custom caster configurations available
SKU
|
94FS10709SBBL
|
Caster Type
|
Swivel
|
Raceway Type
|
5” diameter ball load race with 1/2” steel balls hardened for greater resistance to wear and brinelling, protected by a forged labyrinth skirt
|
Brake
|
None
|
Load Capacity
|
5000 lb
|
Wheel Tread Width
|
4 in
|
Wheel Description
|
FS - Drop-Forged Steel
|
Wheel Color
|
Clear Coat Enamel
|
Wheel Bearing
|
Tapered Roller
|
Wheel Profile
|
Machined flat with rounded edges
|
Wheel Hardness
|
Rockwell 80 B
|
Wheel Thread Guards
|
None
|
Fastening
|
7 1/2" x 6 1/2" top plate
|
Bolt Hole Pattern
|
6" x 4 1/2"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
12.5 in
|
Swivel Radius
|
7.5 in
|
Operating Temperature Range
|
Up to +800°F
|
Warranty
|
1 year
|
Manufacturing Number
|
94FS10709SBBL
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
