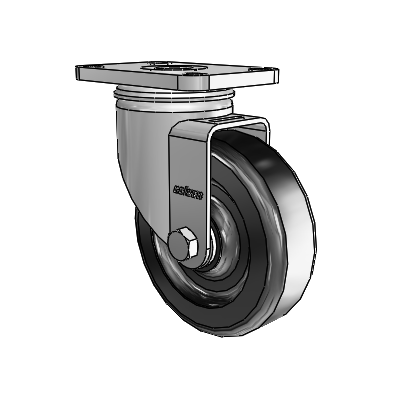

The Colson 2.04456.544 swivel caster features a 4" x 1.25" Polyolefin wheel and a 2-1/2" x 3-5/8" Top Plate, capable of a 275 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Designed to perform in the most hostile environments, the Colson 2 Series Stainless Steel is an industry leader in premium 304 Stainless Steel 1-1/4" wide caster wheel mobility. Commonly utilized in industrial cleaning, laboratory, pharmaceutical, marine/outdoor, and institutional applications, this leading series provides a standard 3-year warranty, high-quality 304-grade stainless steel construction, and some of the most trusted and best-performing wheels in the industry—including the Performa Rubber and HI-TECH Polyurethane wheels. If rust is a problem, Colson 2 Series and its bigger brother D4 Defender Series (2” wide wheels) are your solutions!
• Polished 304-grade stainless steel construction handles the most punishing, corrosive conditions
• Double ball raceways for better performance and greater durability
• All component parts, including spanner bushing, axle, and nut are stainless steel
• NSF approved component (less thread guards on wheels), please note NSF on order if required
• RoHS compliant
SKU
|
2.04456.544
|
Part Number
|
SS34POD40S
|
Caster Type
|
Swivel
|
Raceway Type
|
Full double ball hardened raceways for better performance and durability with multi-temp grease for extreme hot and cold temperatures
|
Brake
|
None
|
Load Capacity
|
275 lb
|
Wheel Tread Width
|
1.25 in
|
Wheel Description
|
Polyolefin
|
Wheel Color
|
Black
|
Wheel Bearing
|
Delrin
|
Wheel Profile
|
Flat Tread
|
Wheel Hardness
|
70(+/-5) Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
2-1/2" x 3-5/8" Top Plate
|
Bolt Hole Pattern
|
1-3/4" x 2-13/16" to 3-1/16"
|
Bolt Size Recommended
|
5/16"
|
Mounting Height
|
5.13 in
|
Swivel Radius
|
3.31 in
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
3 year
|
Manufacturing Number
|
2.04456.544
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
