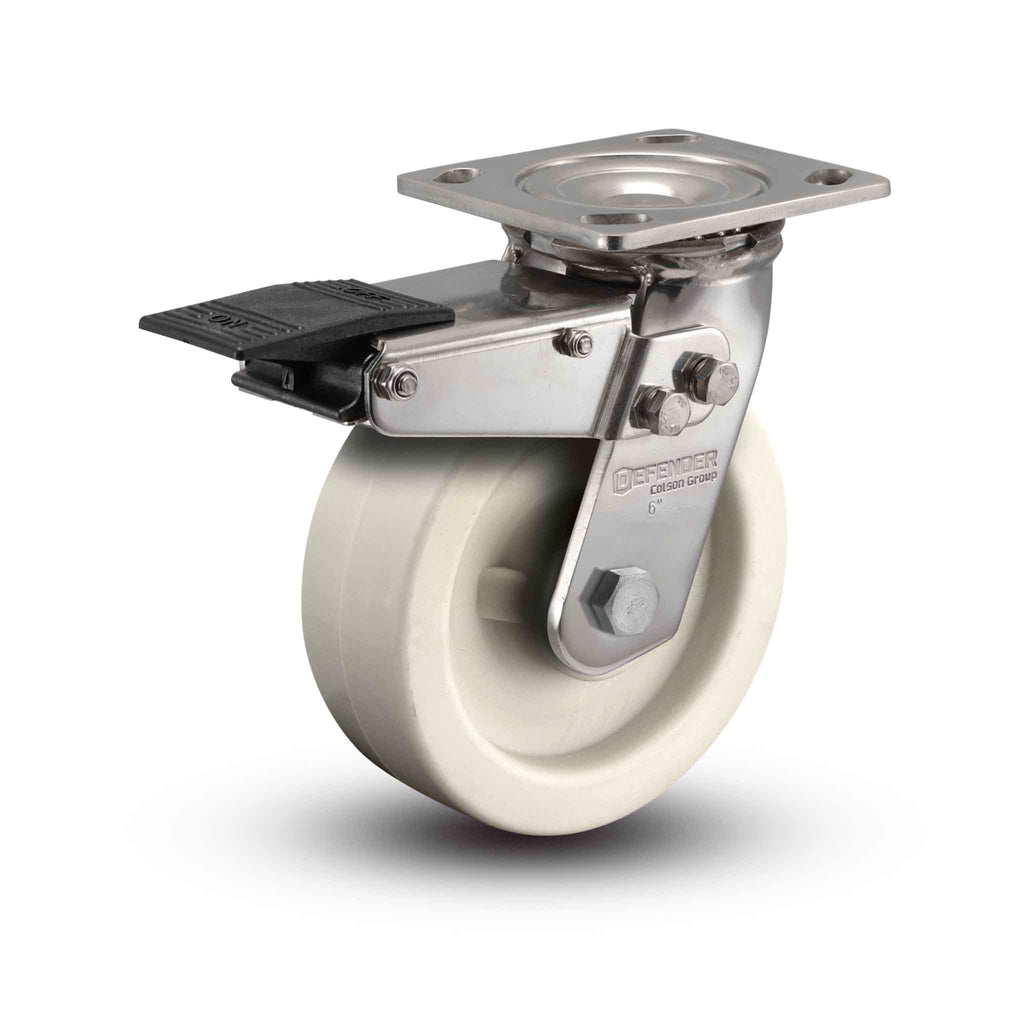

The Colson D4.08109.839 RW BRK4 SS WB29 swivel caster with Top Total Lock brake features a 8" x 2" Retort Hi-Temp wheel and a 4" x 4-1/2" Top Plate, capable of a 900 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The Colson D4 Defender is the ideal 2” wide caster solution for customers requiring lasting performance and corrosion resistance. Manufactured from Type 304 stainless steel and polished, this series provides premium features and a critical defense to applications exposed to washdowns, cleaning agents, steam, caustic solutions, and other environmental conditions that eventually cause oxidation and failure in standard casters. From the standard FDA-approved performance food-grade grease, 3/4” permanent rivet kingpin, and top-performing wheels in the industry—including the Performa Rubber wheel—the Defender D4 will continue to perform through the toughest of elements.
• Constructed of highly polished, corrosion-resistant stainless steel (304 Grade)
• Top plate and legs formed from ¼" thick stainless steel for durability
• Legs precision welded to the yoke for strength
• Double stainless steel ball-bearing raceways (with zerk) formed smooth for ease of swiveling
• ¾" 304 Stainless steel permanent rivet kingpin for long swivel life
• Food grade -40°F to 600°F performance grease (FDA approved)
• ½" diameter 304 stainless steel zerk axle standard; solid axle available by special order
• NSF listed
SKU
|
D4.08109.839 RW BRK4 SS WB29
|
Caster Type
|
Swivel
|
Raceway Type
|
Full double ball hardened raceways for better performance and durability with food grade -40°F to 600°F performance grease (FDA approved)
|
Brake
|
Total Lock Brake (DTBRK4)
|
Load Capacity
|
900 lb
|
Wheel Tread Width
|
2 in
|
Wheel Description
|
Retort Hi-Temp
|
Wheel Color
|
Off White
|
Wheel Bearing
|
Roller
|
Wheel Hardness
|
75 Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
4" x 4-1/2" Top Plate
|
Bolt Hole Pattern
|
2-5/8" to 3" x 3" to 3-5/8"
|
Bolt Size Recommended
|
3/8"
|
Mounting Height
|
9.5 in
|
Swivel Radius
|
6.94 in
|
Operating Temperature Range
|
-20°F to +290°F continuous
|
Warranty
|
3 year
|
Manufacturing Number
|
D4.08109.839 RW BRK4 SS WB29
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
