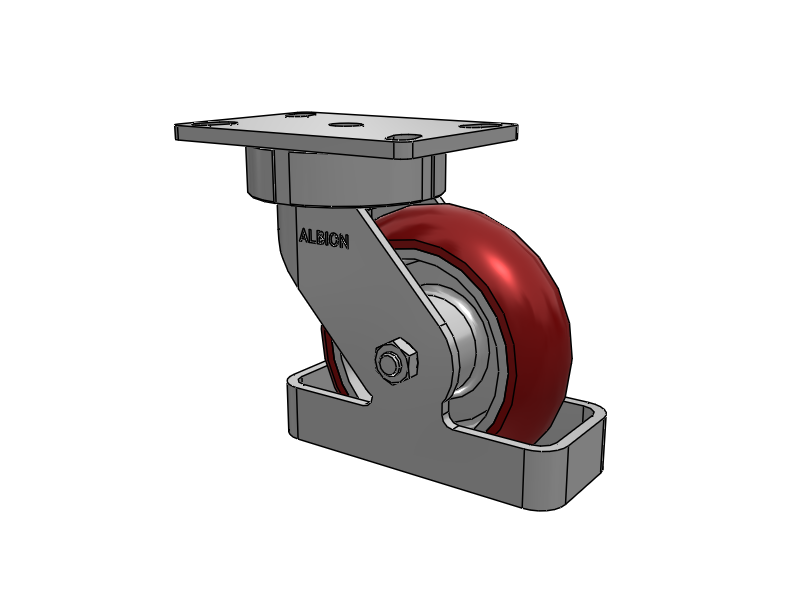

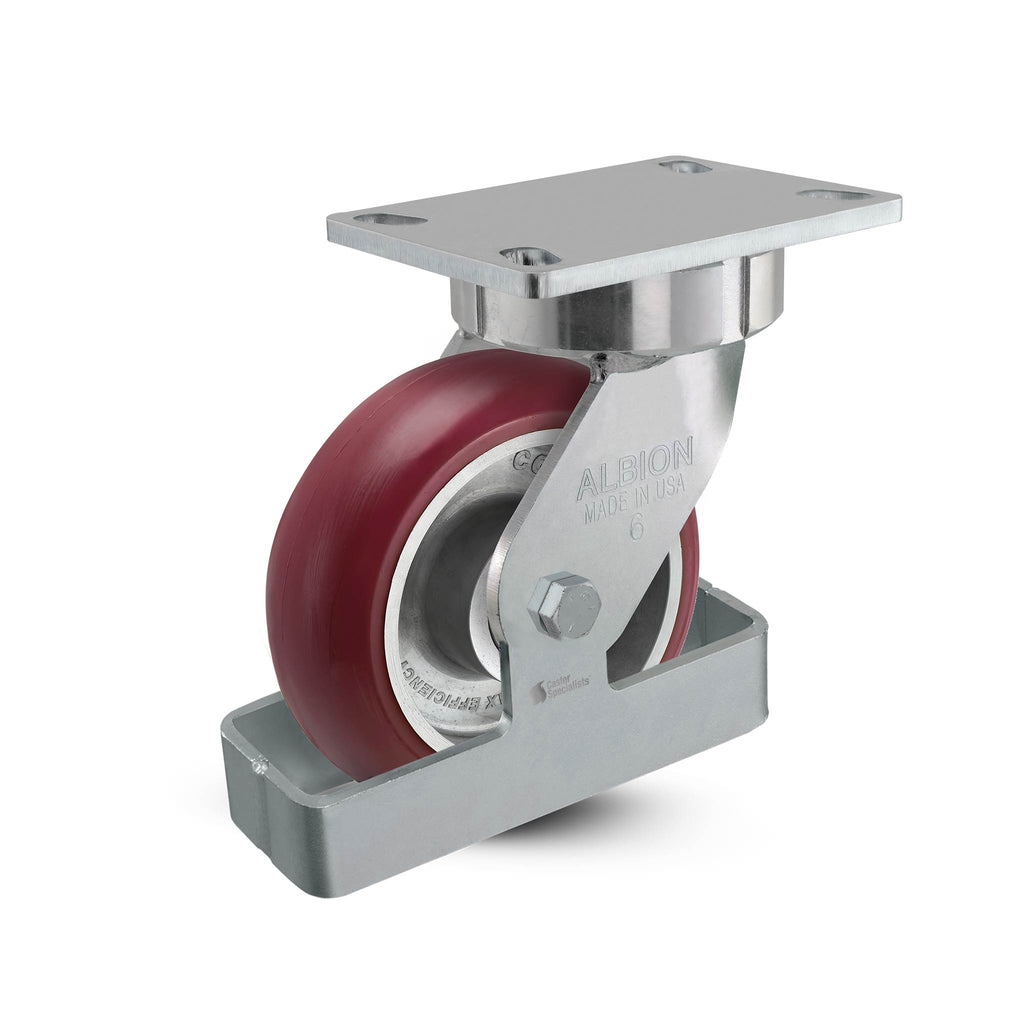

Albion 38AX06228STO – 6"x2" Swivel Caster with Toe Guard & Maroon MAX-Efficiency Polyurethane-on-Aluminum Wheel – 1,250 lb Capacity
Ergonomic Performance & Long-Term Durability
The Albion 38AX06228STO swivel plate caster is built to deliver exceptional mobility, durability, and operator protection in demanding industrial environments. Equipped with the Maroon MAX-Efficiency polyurethane-on-aluminum wheel, it is engineered for high-capacity performance while reducing push/pull forces to protect workers from strain. The ergonomic extended-lead swivel rig ensures smoother tracking, reduced chatter, and quieter operation for both manual and towed applications.
Key Safety & Ergonomic Advantages
-
USA-Made Maintenance-Free Rig – Sealed precision ball bearings in both swivel section and wheel require no lubrication for the life of the caster.
-
Effortless Mobility – Extended-lead design improves caster tracking, steering control, and maneuverability.
-
Integrated Toe Guard – Protects operator feet from impact and keeps debris away from the wheel.
-
Quiet Operation – Reduces workplace noise compared to hard-tread or metal wheels.
-
ANSI ICWM Tested – Proven strength and safety in demanding applications.
Premium Maroon MAX-Efficiency Wheel
-
Material – High-performance polyurethane tread bonded to a precision-machined aluminum core.
-
Ergonomic Gains – Designed to reduce push/pull forces for improved operator comfort and productivity.
-
Durability – Built for long life in heavy-duty environments.
-
Tread Profile – Radius/crowned tread for easy maneuverability and smooth rolling.
-
Chemical & Moisture Resistance – Resists oils, greases, water, and most chemicals.
-
Temperature Range – Reliable operation from -40°F to 180°F.
Specifications
-
Wheel Size – 6" diameter x 2" wide polyurethane-on-aluminum
-
Capacity – 1,250 lbs dynamic load per caster
-
Top Plate Size – 6-1/4" x 4-1/2"
-
Toe Guard – Integrated into legs for operator protection
-
Rig Type – Albion ergonomic extended-lead swivel rig
-
Finish – Zinc plated for corrosion resistance
-
Bearings – Sealed precision ball bearings (wheel & swivel)
-
Warranty – 3 years
-
Testing – ANSI ICWM certified
Ideal Applications
-
Heavy-duty carts and dollies
-
Towed industrial equipment
-
Manufacturing and assembly line transport
-
Waste handling and bulk material movement
-
Applications requiring ergonomic mobility and floor protection
Need a swivel lock, rigid, or brake-equipped version?
The Albion 38 Series offers multiple configurations to fit your specific needs—contact us for assistance.
