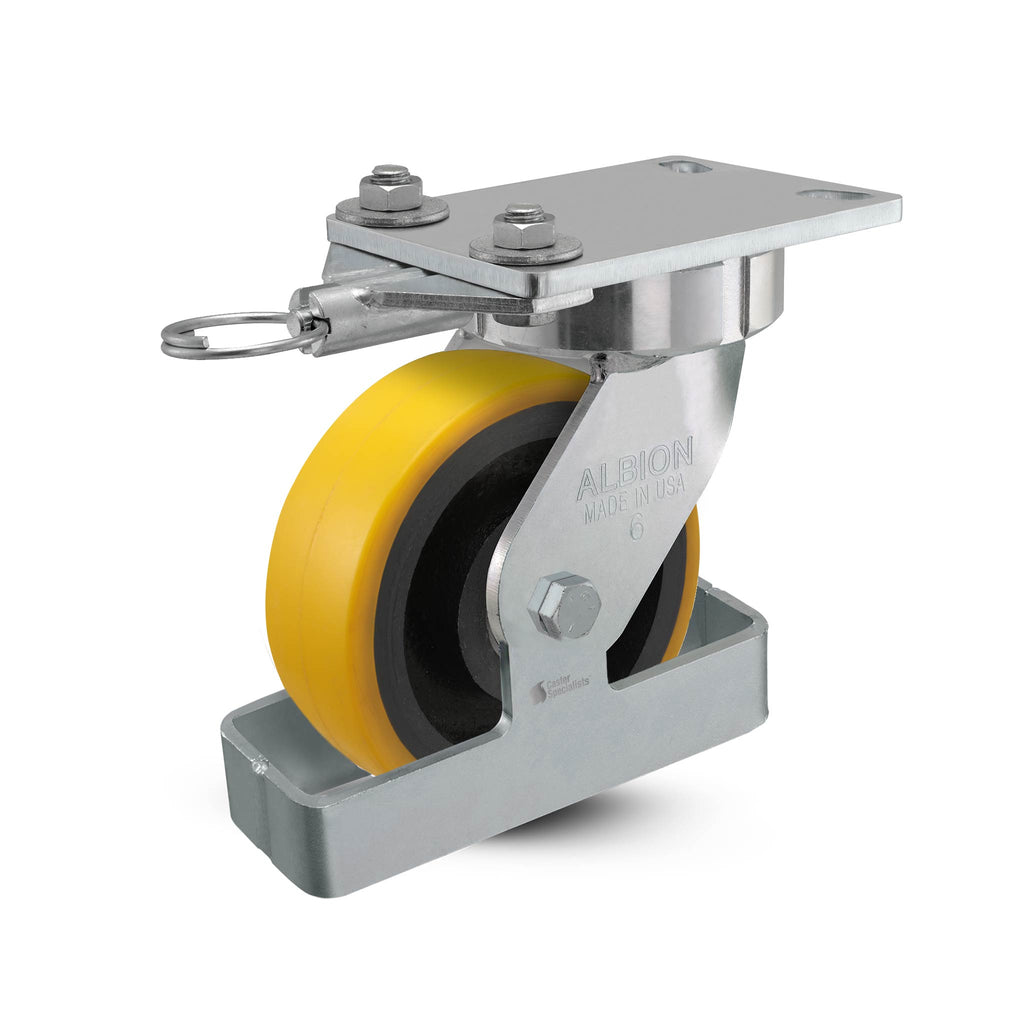

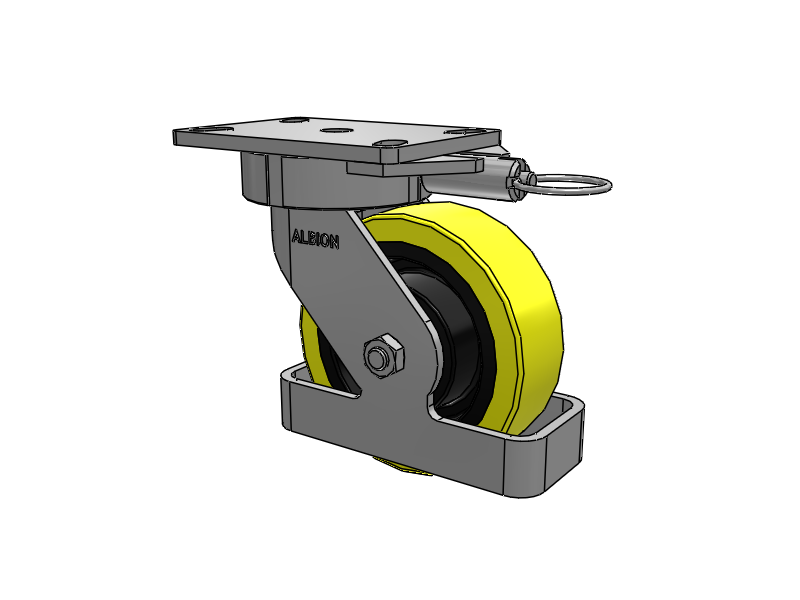

Albion 38PF06228SLTO – 6"x2" Swivel Caster with Polyurethane-on-Iron Wheel, Toe Guard & 4-Position Swivel Lock – 2,000 lb Capacity
Engineered for Safety, Control, and Long-Term Performance
The Albion 38PF06228SLTO swivel plate caster is built for industrial environments that demand ergonomic mobility, high load capacity, and precise directional control. Equipped with a USA-made extended-lead swivel rig, a 4-position swivel lock, and a premium polyurethane-on-iron wheel, this caster is ANSI ICWM tested for lasting safety and backed by a 3-year premium warranty.
Key Safety & Ergonomic Advantages
-
USA-Made Maintenance-Free Rig – Sealed precision ball bearings in the swivel section and wheel eliminate the need for lubrication.
-
Effortless Mobility – Extended-lead design improves caster tracking, reduces chatter, and lowers push/pull forces to help reduce operator fatigue.
-
4-Position Swivel Lock – Locks the caster in one of four fixed positions for straight-line control when needed.
-
Integrated Toe Guard – Protects operator feet and keeps debris from entering the wheel path.
-
ANSI ICWM Tested – Certified to perform under rigorous industrial conditions.
Premium Heavy-Duty Polyurethane-on-Iron Wheel
-
Material – High-performance polyurethane tread (95 Shore A hardness) bonded to a precision-machined cast iron core.
-
Performance – Offers the strength and load capacity of metal wheels with superior floor protection, noise reduction, and shock absorption.
-
Bond Quality – Chemically bonded tread resists separation under heavy loads and torque.
-
Tread Profile – Radius tread for smooth rolling and precise maneuverability.
-
Chemical & Moisture Resistance – Resists water, oils, greases, and most chemicals.
-
Temperature Range – Reliable operation from -40°F to 180°F.
Specifications
-
Wheel Size – 6" diameter x 2" wide polyurethane-on-iron
-
Capacity – 2,000 lbs dynamic load per caster
-
Top Plate Size – 6-1/4" x 4-1/2"
-
Swivel Lock – 4-position for rigid or free-swiveling operation
-
Toe Guard – Integrated for safety
-
Rig Type – Albion ergonomic extended-lead swivel rig
-
Finish – Zinc plated for corrosion resistance
-
Bearings – Sealed precision ball bearings in wheel and swivel
-
Warranty – 3 years
-
Testing – ANSI ICWM certified
Ideal Applications
-
Heavy-duty warehouse carts and dollies
-
Bulk material handling trucks
-
Towed equipment for manufacturing & distribution
-
Waste transport and collection carts
-
Any environment requiring high capacity, floor protection, and easy steering control
Need a rigid or brake-equipped version?
The Albion 38 Series is available in multiple wheel materials and configurations—contact us for options and volume pricing.
