Engineered for Safety, Control, and Ergonomic Performance

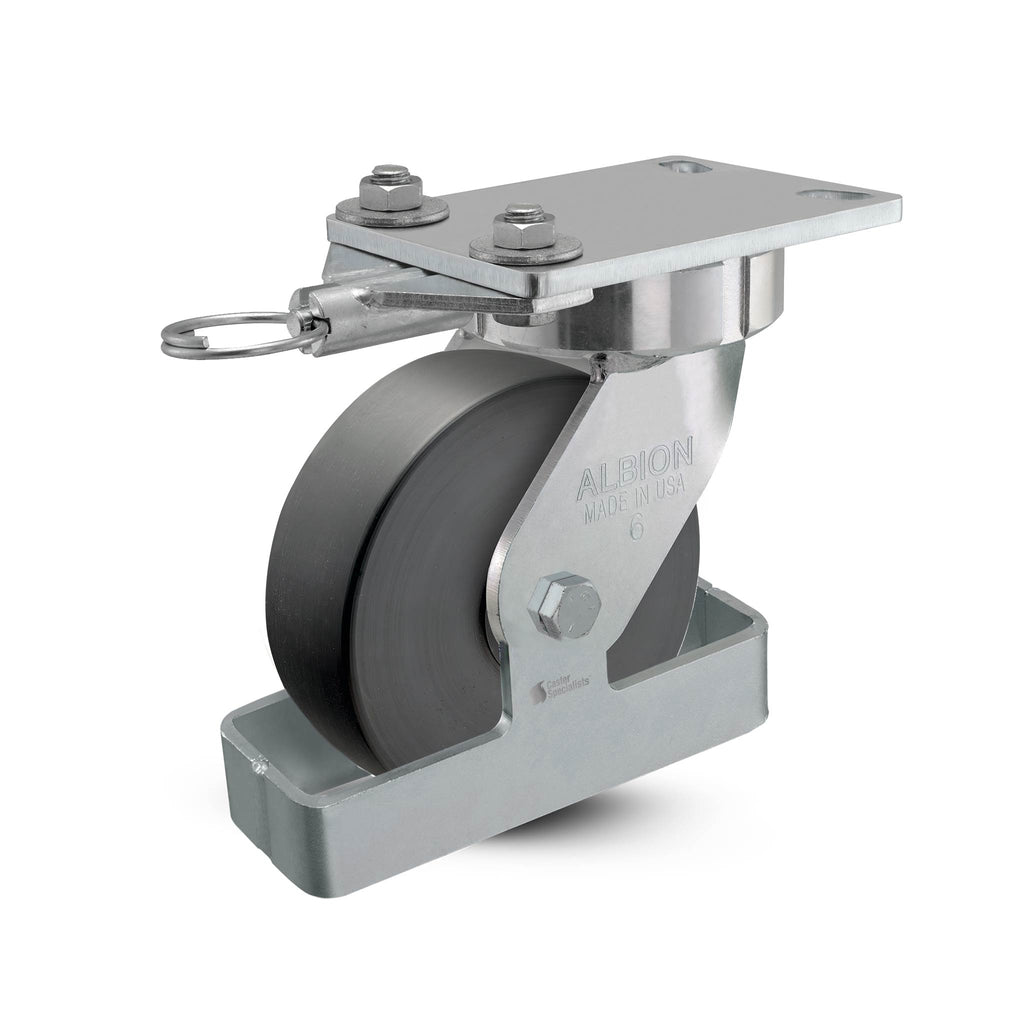

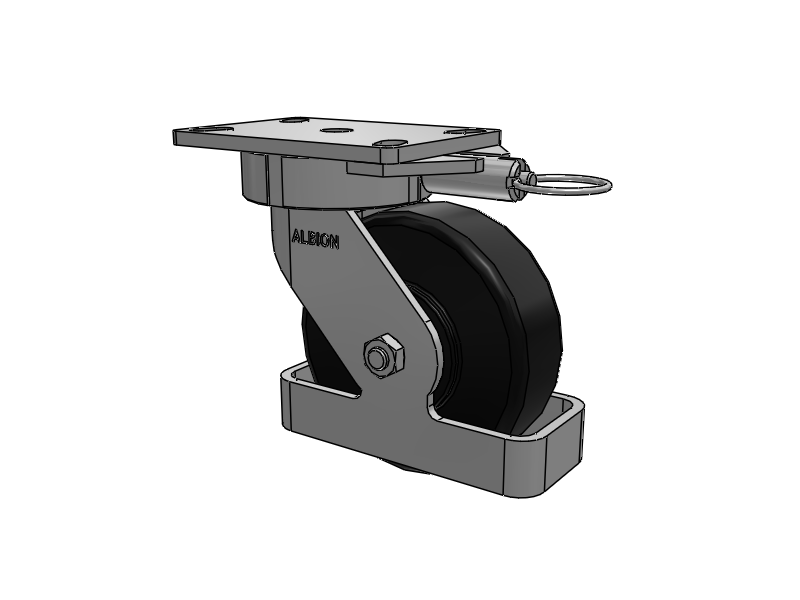

The Albion 38NX06228SLTO swivel plate caster is designed for demanding industrial applications where precision steering control, operator safety, and reliable performance are top priorities. Built in the USA and ANSI ICWM tested, this caster features a rugged maintenance-free design with a high-capacity nylon wheel and integrated 4-position swivel lock for optimal versatility in both manual and towed operations.
Key Safety & Ergonomic Advantages
-
USA-Made Rigid-Welded Rig – Laser-cut 5/16" HSLA top plate with 1/4" double-welded legs for unmatched strength and durability.
-
Effortless Mobility – Extended-lead design improves tracking, reduces chatter, and lowers push/pull forces to help minimize operator fatigue.
-
4-Position Swivel Lock – Converts the swivel into a rigid caster for straight-line control when required.
-
Integrated Toe Guard – Shields operator feet and deflects debris from the wheel path.
-
ANSI ICWM Tested – Certified for lasting safety and performance under heavy-duty conditions.
Premium Heavy-Duty Nylon Wheel
-
Material – Trionix high-impact polymer nylon (78–82 Shore D hardness).
-
Performance – Matches the capacity of metal wheels while rolling quieter and protecting floors.
-
Chemical & Moisture Resistance – Withstands water, corrosion, and most common chemicals.
-
Temperature Range – Operates from -30°F to 220°F for broad environmental adaptability.
-
Tread Profile – Slight crown improves maneuverability without sacrificing stability.
Specifications
-
Wheel Size – 6" diameter x 2" wide
-
Capacity – 2,160 lbs dynamic load per caster
-
Top Plate Size – 6-1/4" x 4-1/2"
-
Swivel Lock – 4-position
-
Toe Guard – Integrated for safety
-
Rig Type – Albion extended-lead ergonomic swivel rig
-
Finish – Zinc plated for corrosion resistance
-
Bearings – Sealed precision ball bearings in wheel and swivel
-
Warranty – 3 years
-
Testing – ANSI ICWM certified
Ideal Applications
-
Industrial carts & dollies
-
Heavy warehouse equipment
-
Towed bulk handling carts
-
Waste & transport equipment
-
Any application needing quick conversion between swivel and rigid control
Need a brake-equipped or alternative wheel version?
The Albion 38 Series is available in multiple wheel materials and configurations to match your exact requirements—contact us for options and volume pricing.
