Premium Ergonomics, Safety, and Floor Protection

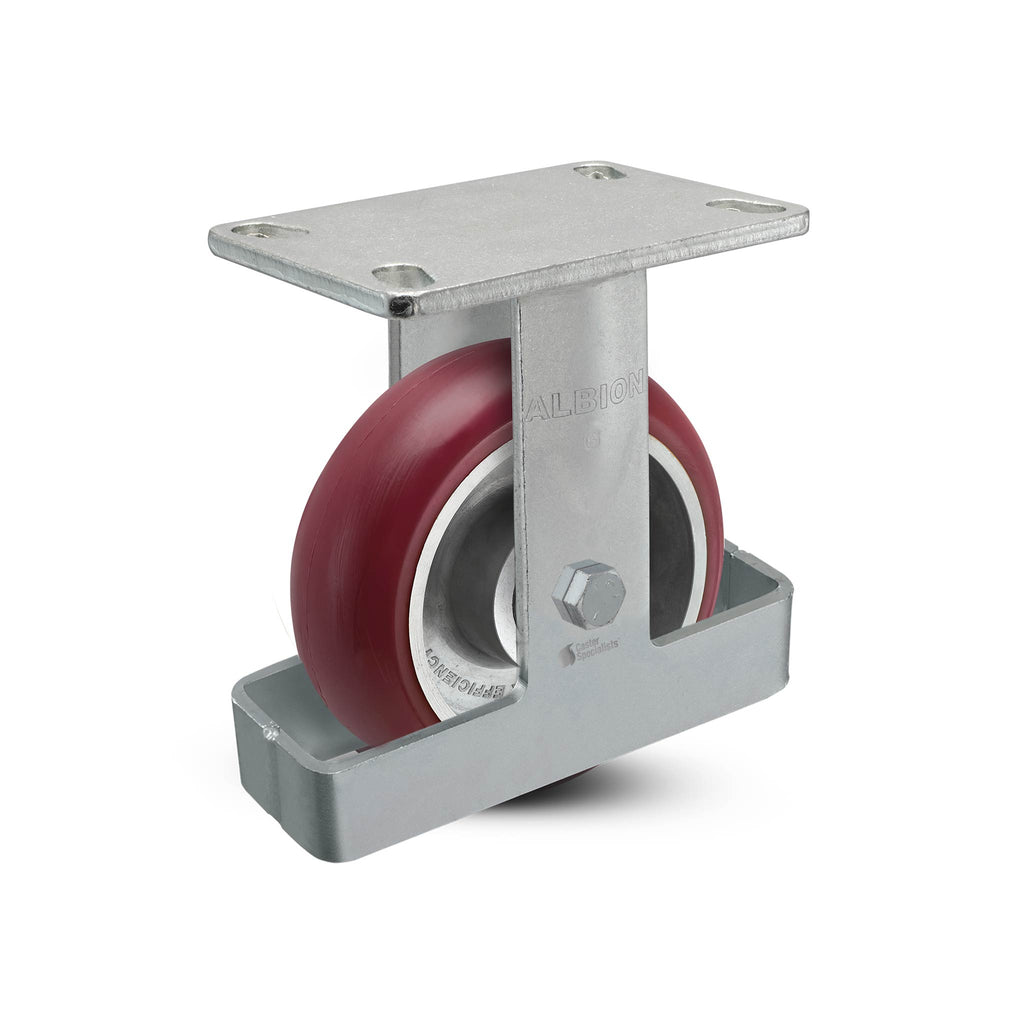

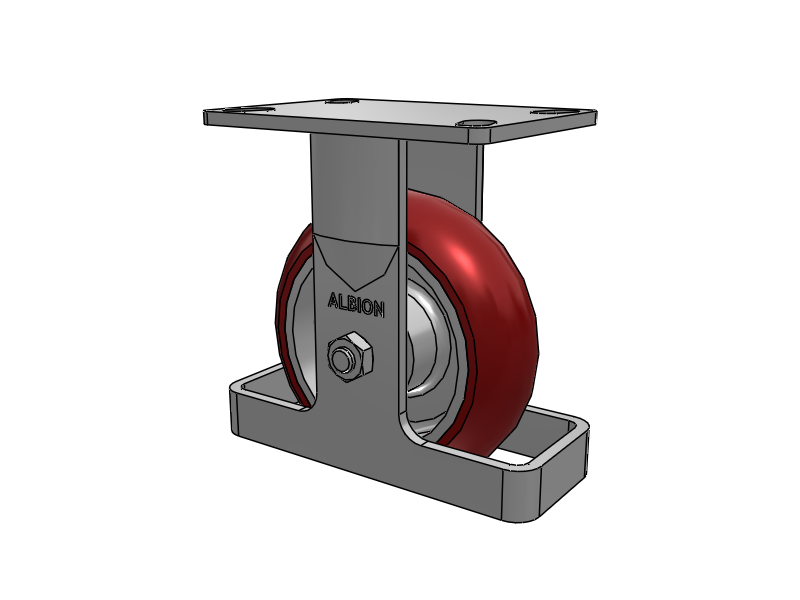

The Albion 38AX06228RTO rigid plate caster delivers exceptional ergonomic performance, operator safety, and durability for high-demand industrial environments. Proudly USA-made, the precision laser-cut rigid rig features a 5/16" HSLA steel top plate and 1/4" double-welded steel legs for uncompromising strength. An integrated toe guard protects operator feet and helps block debris from entering the wheel path—enhancing workplace safety.
Key Safety & Structural Advantages
-
USA-Made Rigid Rig – Laser-cut and welded for superior load capacity and structural integrity.
-
Toe Guard Protection – Shields operator feet from impact while keeping debris out of the rolling path.
-
Reinforced Build – 5/16" HSLA top plate and 1/4" steel legs, welded inside and out for long service life.
Premium Maroon MAX-Efficiency Wheel
-
Material – Ergonomic polyurethane tread (85 Shore A hardness) on a precision-machined aluminum core.
-
Operator-Friendly Design – Engineered for reduced push/pull forces, improving productivity and lowering injury risk.
-
Floor-Safe & Quiet – Protects floors and reduces noise compared to harder wheel materials.
-
Durable Performance – Resistant to common chemicals, oils, and moisture for reliable operation in varied environments.
-
Temperature Range – Performs in conditions from -40°F to 180°F.
Specifications
-
Wheel Size: 6" diameter x 2" wide MAX-Efficiency polyurethane-on-aluminum (maroon)
-
Capacity: 1,250 lbs dynamic load per caster
-
Top Plate Size: 6-1/4" x 4-1/2"
-
Rig Type: Rigid with integrated toe guard
-
Finish: Zinc plated for corrosion resistance
-
Bearings: Sealed precision ball bearings in the wheel
-
Warranty: 3 years
-
Testing: ANSI ICWM tested for safety and performance
Ideal Applications
-
Heavy-duty warehouse carts and dollies
-
Assembly line equipment with frequent operator interaction
-
Towed or manually moved high-value equipment
-
Material handling carts where floor protection and quiet operation are critical
Need a swivel, brake-equipped, or alternative wheel version?
The Albion ergonomic series is available in multiple configurations—contact us for options and volume pricing.
