Best-in-Class Ergonomics, Safety, and Durability

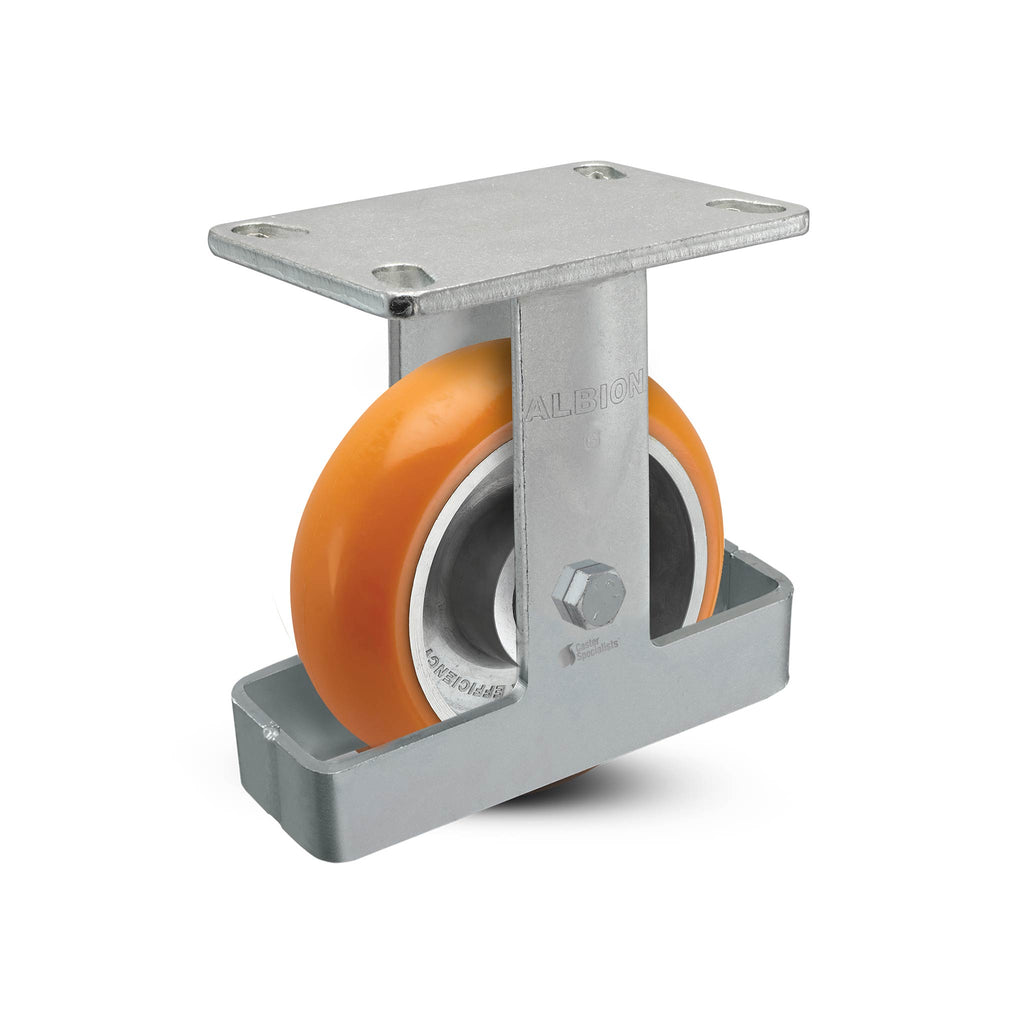

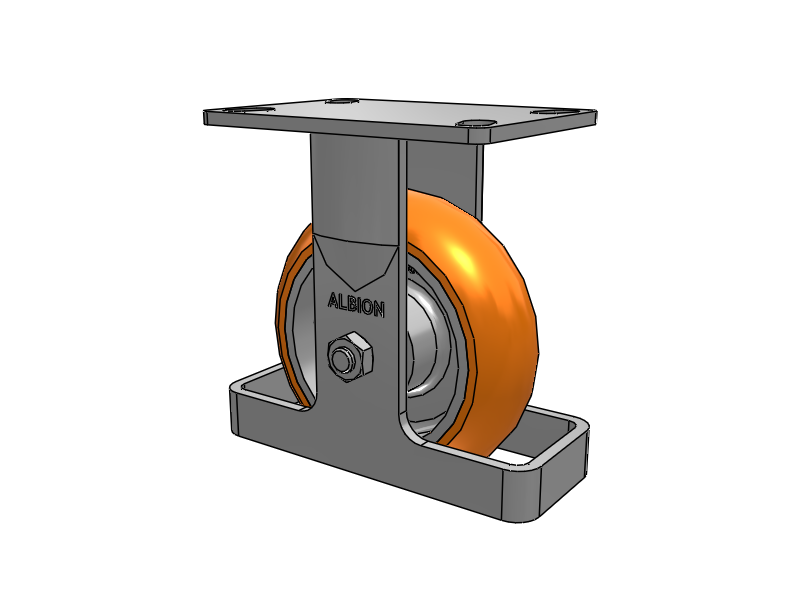

The Albion 38AN06228RTO rigid plate caster is built for industrial environments where maximum mobility efficiency, operator safety, and long-term durability are critical. Made in the USA, the precision laser-cut rigid rig features a 5/16" HSLA steel top plate and 1/4" double-welded steel legs for unmatched strength. An integrated toe guard protects operator feet and helps keep debris clear of the wheel path—ensuring safer operation in demanding material handling applications.
Key Safety & Structural Advantages
-
USA-Made Rigid Rig – Laser-cut and double-welded for superior load capacity and strength.
-
Toe Guard Protection – Shields feet from accidental impact and blocks debris from the wheel path.
-
Reinforced Build – 5/16" HSLA top plate and heavy 1/4" steel legs welded on both sides for lasting performance.
Premium Orange MAX-Efficiency Wheel
-
Material – Advanced ergonomic polyurethane tread (85 Shore A hardness) on a precision-machined aluminum core.
-
Proven Ergonomic Gains – Independent testing shows up to 26% less push/pull effort compared to standard wheels.
-
Longer Service Life – Outlasts the leading competitor by up to 2x in wear testing.
-
Quiet, Floor-Safe Performance – Protects floors while reducing noise for a safer, more comfortable workplace.
-
Debris Shedding Design – Radius tread and self-retaining top hats reduce buildup and prevent zip tie waste.
-
Temperature Range – Performs from -40°F to 180°F in varied environments.
Specifications
-
Wheel Size: 6" diameter x 2" wide MAX-Efficiency polyurethane-on-aluminum
-
Capacity: 1,250 lbs dynamic load per caster
-
Top Plate Size: 6-1/4" x 4-1/2"
-
Rig Type: Rigid with integrated toe guard
-
Finish: Zinc plated for corrosion resistance
-
Bearings: Sealed precision ball bearings in the wheel
-
Warranty: 3 years
-
Testing: ANSI ICWM tested for safety and performance
Ideal Applications
-
Heavy-duty warehouse carts and dollies
-
Towed equipment requiring top ergonomic performance
-
High-capacity assembly line carts
-
Bulk material handling trucks
-
Facilities seeking reduced injury risks and improved productivity
Need a swivel or brake-equipped version?
The Albion ergonomic series is available in multiple configurations—contact us for options and volume pricing.
