Engineered for Safety, Strength, and High-Capacity Performance

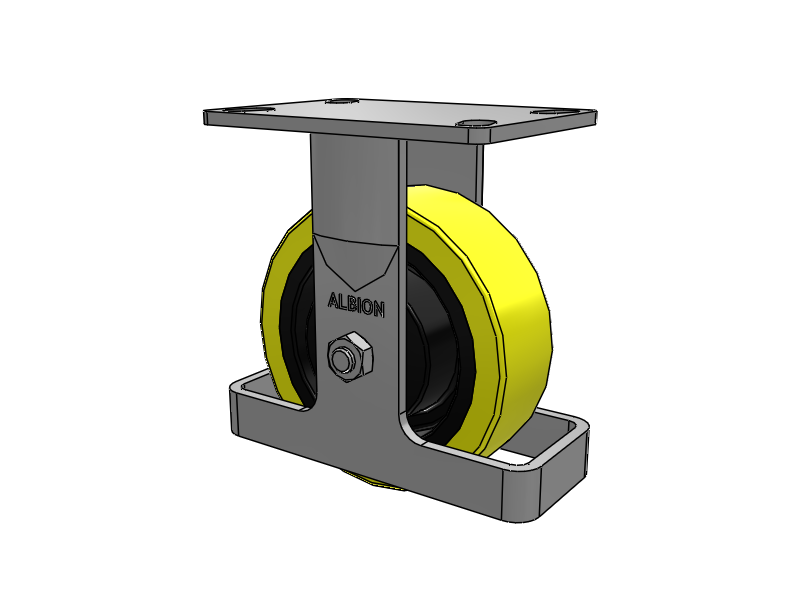

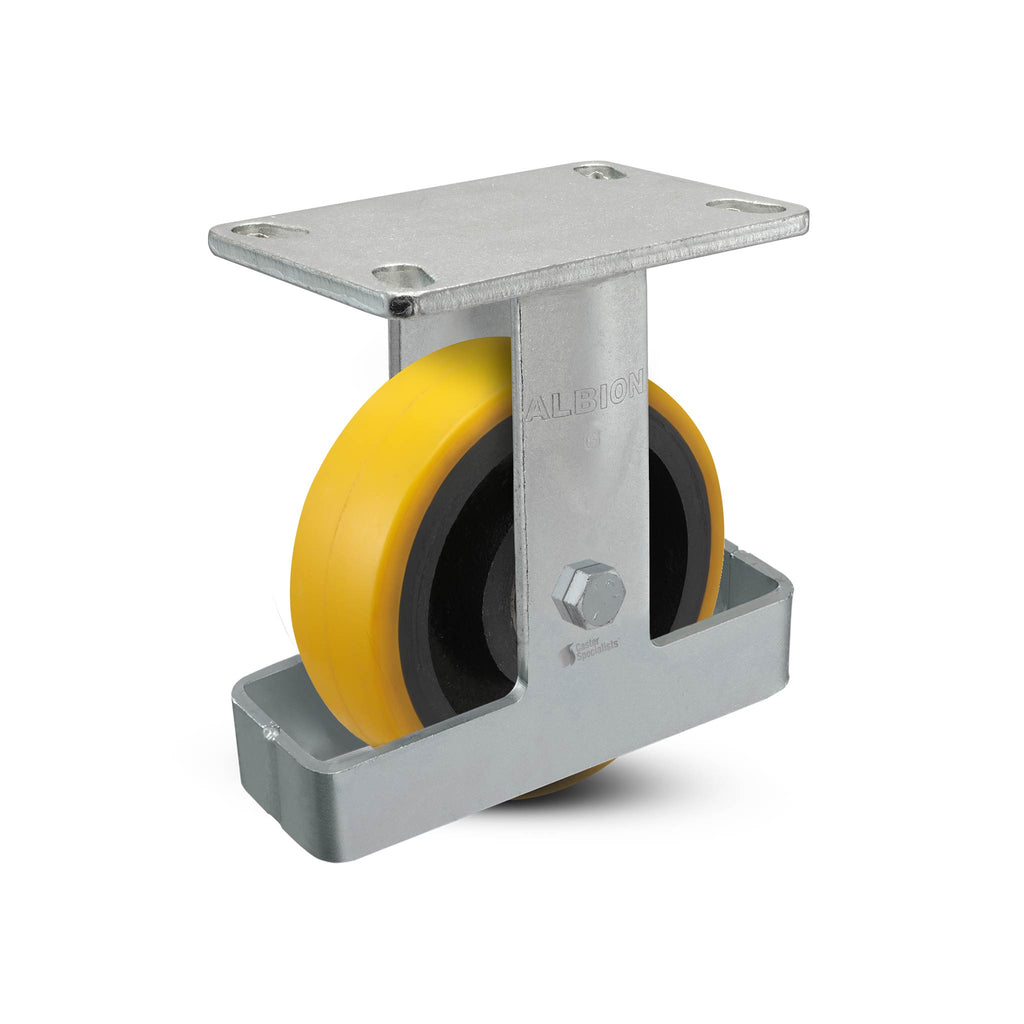

The Albion 38PF06228RTO rigid plate caster is built to deliver long-lasting strength, operator protection, and smooth, quiet mobility in heavy-duty industrial applications. Made in the USA, this caster features a precision laser-cut, fully welded rigid rig with a 5/16" HSLA steel top plate and 1/4" double-welded steel legs for maximum load capacity and durability. An integrated toe guard helps protect operators’ feet while keeping debris clear of the wheel path, making it an ideal choice for environments where safety and reliability are top priorities.
Key Safety & Structural Advantages
-
USA-Made Rigid Rig – Heavy-duty steel rig, laser-cut and double-welded for maximum strength.
-
Toe Guard Protection – Shields operator feet from impacts and prevents debris intrusion.
-
Reinforced Top Plate & Legs – 5/16" HSLA steel plate with 1/4" steel legs, welded inside and out for superior strength.
Premium Heavy-Duty Polyurethane-on-Iron Wheel
-
Material – High-performance polyurethane tread (95 Shore A hardness) bonded to precision-machined cast iron core.
-
Performance – Combines the strength and capacity of metal wheels with floor protection, noise reduction, and shock absorption.
-
Bond Quality – Chemically bonded tread resists separation under heavy loads and torque.
-
Tread Profile – Radius tread for smoother turning and improved maneuverability.
-
Chemical & Moisture Resistance – Withstands oils, greases, water, and most chemicals.
-
Temperature Range – Performs reliably from -40°F to 180°F.
Specifications
-
Wheel Size: 6" diameter x 2" wide polyurethane-on-iron
-
Capacity: 2,000 lbs dynamic load per caster
-
Top Plate Size: 6-1/4" x 4-1/2"
-
Rig Type: Rigid with integrated toe guard
-
Finish: Zinc plated for corrosion resistance
-
Bearings: Sealed precision ball bearings in the wheel
-
Warranty: 3 years
-
Testing: ANSI ICWM tested for safety and performance
Ideal Applications
-
High-capacity warehouse carts and dollies
-
Bulk material handling trucks
-
Industrial waste transport
-
Towed or manual heavy-duty equipment
-
Applications requiring fixed-direction, high-strength casters with floor-friendly performance
Need a swivel or braking version?
This Albion ergonomic series is available in multiple configurations—contact us for options and volume pricing.
