Engineered for Safety, Ergonomics, and Maintenance Savings

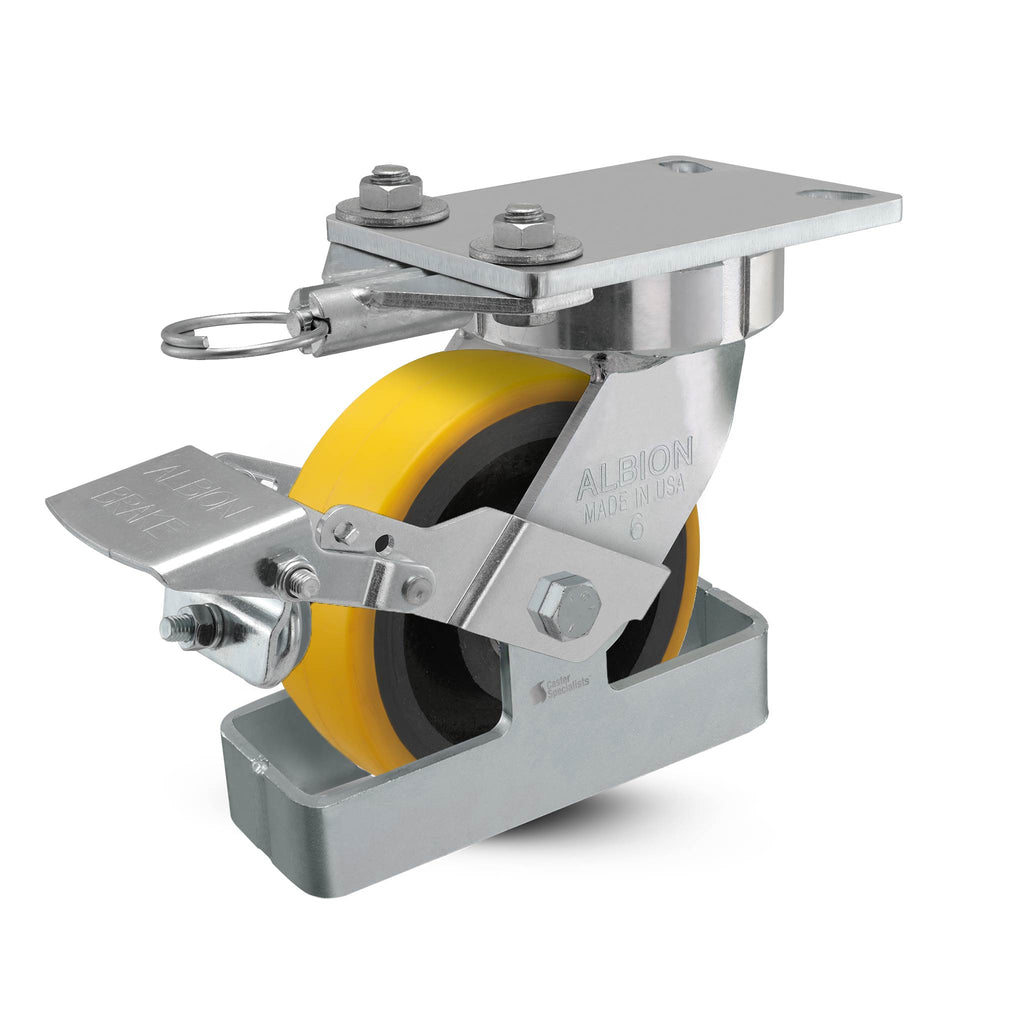

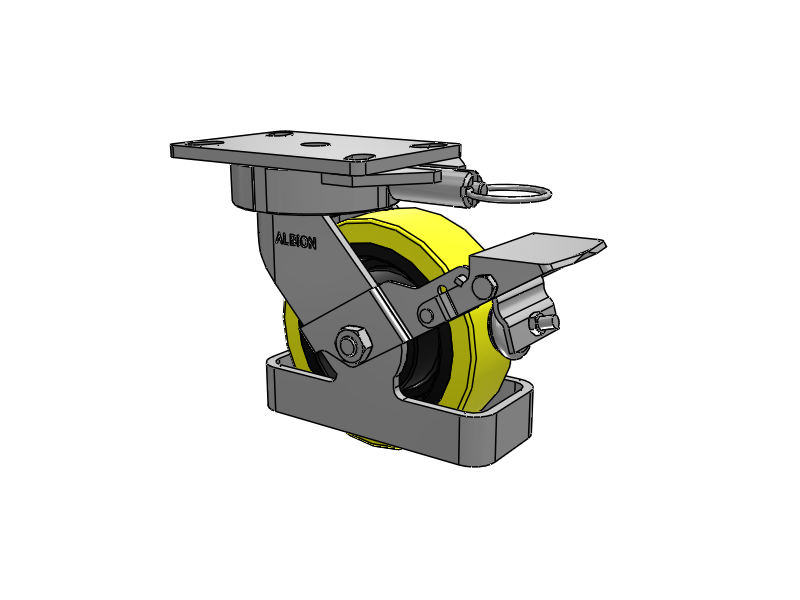

The 6"x2" Albion 38PF06228SLFBKTO swivel plate caster is designed to enhance workplace safety, reduce operator fatigue, and lower long-term maintenance costs—making it an ideal upgrade for replacing noisy, floor-damaging metal wheels. Built for demanding industrial environments, this ANSI ICWM tested caster is completely maintenance-free for life and backed by a 3-year premium warranty, delivering ergonomic performance, premium durability, and operator protection in one heavy-duty solution.
Key Safety & Ergonomic Advantages
-
USA Maintenance-Free Rig – Sealed precision ball bearings in both swivel section and wheel eliminate the need for lubrication.
-
Effortless Mobility – Reduced push/pull forces minimize operator fatigue and help prevent workplace injuries.
-
Extended Lead Design – Improves steering control, caster tracking, and reduces chatter in towed or high-speed use.
-
Toe Guard Protection – Integrated guard shields operator feet from impact and prevents debris from entering the wheel path.
-
Positive Face Brake – Easy-to-engage brake locks the wheel securely during loading, unloading, or stationary positioning.
-
4-Position Swivel Lock – Locks the swivel in one of four fixed positions for precise directional control, converting to a rigid caster when needed.
Premium Heavy-Duty Polyurethane-on-Iron Wheel
-
Material – High-performance polyurethane tread (95 Shore A hardness) bonded to precision-machined cast iron core.
-
Performance – Combines the strength and load capacity of metal wheels with superior floor protection, noise reduction, and shock absorption.
-
Bond Quality – Chemically bonded tread resists separation under heavy loads and torque.
-
Tread Profile – Radius tread enhances maneuverability while maintaining stability.
-
Chemical & Moisture Resistance – Resists water, oils, greases, and most chemicals.
-
Temperature Range – Performs reliably from -40°F to 180°F.
Specifications
-
Wheel Size – 6" diameter x 2" wide polyurethane-on-iron
-
Capacity – 2,000 lbs dynamic load per caster
-
Top Plate Size – 6-1/4" x 4-1/2"
-
Brake Type – Positive face brake
-
Swivel Lock – 4-position for rigid or free-swiveling operation
-
Toe Guard – Integrated into legs
-
Rig Type – Albion ergonomic extended-lead swivel rig
-
Finish – Zinc plated for corrosion resistance
-
Bearings – Sealed precision ball bearings (wheel and swivel)
-
Warranty – 3 years
-
Testing – ANSI ICWM tested for safety and performance
Ideal Applications
-
Heavy-duty warehouse carts and dollies
-
Towed bulk material handling equipment
-
Industrial waste and transport carts
-
Equipment requiring high capacity, floor protection, and quiet operation
-
Applications needing quick conversion between swivel and rigid control
Need a rigid, brake-free, or alternative wheel version?
The Albion ergonomic series is available in multiple configurations to fit your exact needs—contact us for options and volume pricing.
