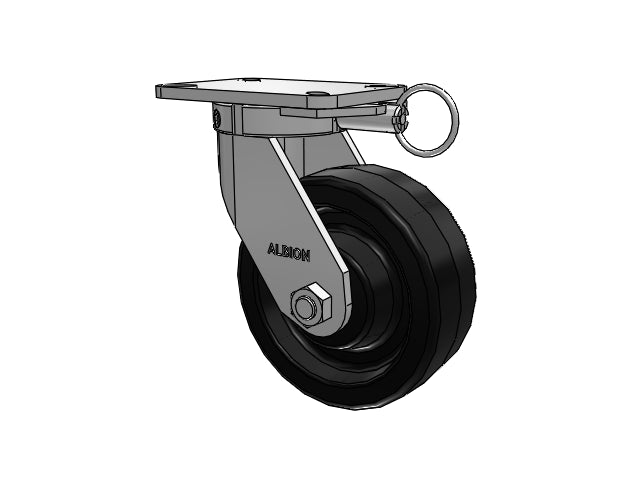

The Albion 410TM08501SL swivel caster features a 8" x 3" wide wheel and a 7-1/4'' x 5-1/4'' top plate, capable of a 2500 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This USA-made series is a 3” wide-wheel workhorse designed to handle shock and impact. Constructed from high-quality, heat-treated AISI 1045 laser-cut steel, this series provides trusted performance. Precision machined raceway, fully welded legs (inside and outside), and kingpinless design delivers superior strength in rugged applications. This series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• 3-Year warranty
• Laser-cut steel construction
• Top Plate: 3/8" AISI 1045 heat-treated steel welded inside and out for longer life
• Swivel Section: One row of 1/2" ball bearings mounted in a heat-treated precision machined raceway; zerk in swivel section
• Yoke Base: Notched AISI 1045 steel
• Legs: 3/8" thick welded inside and out for strength
• Axle: 3/4" diameter
• Finish: RoHS Zinc plating with clear coat, for greater corrosion resistance than paint
