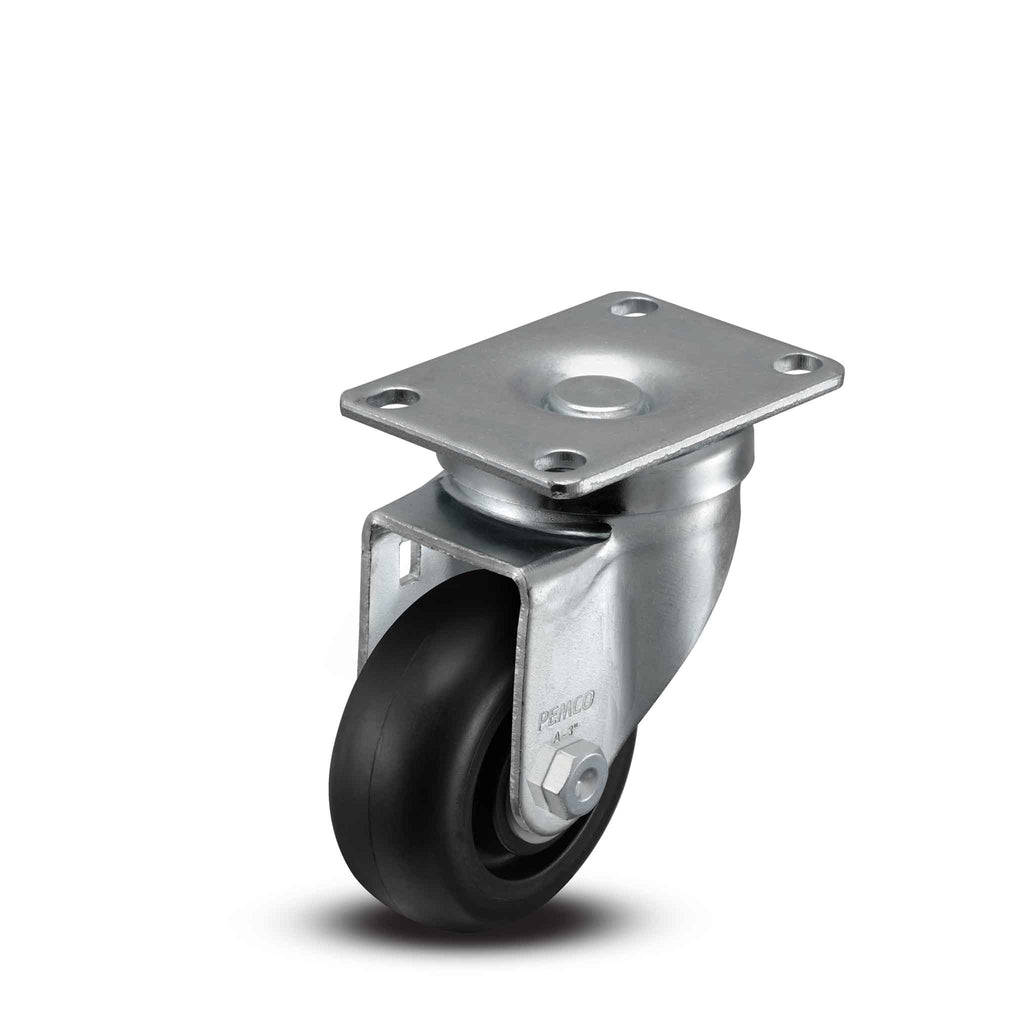

Main view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Polypropylene wheel and 270 lb. capacity part

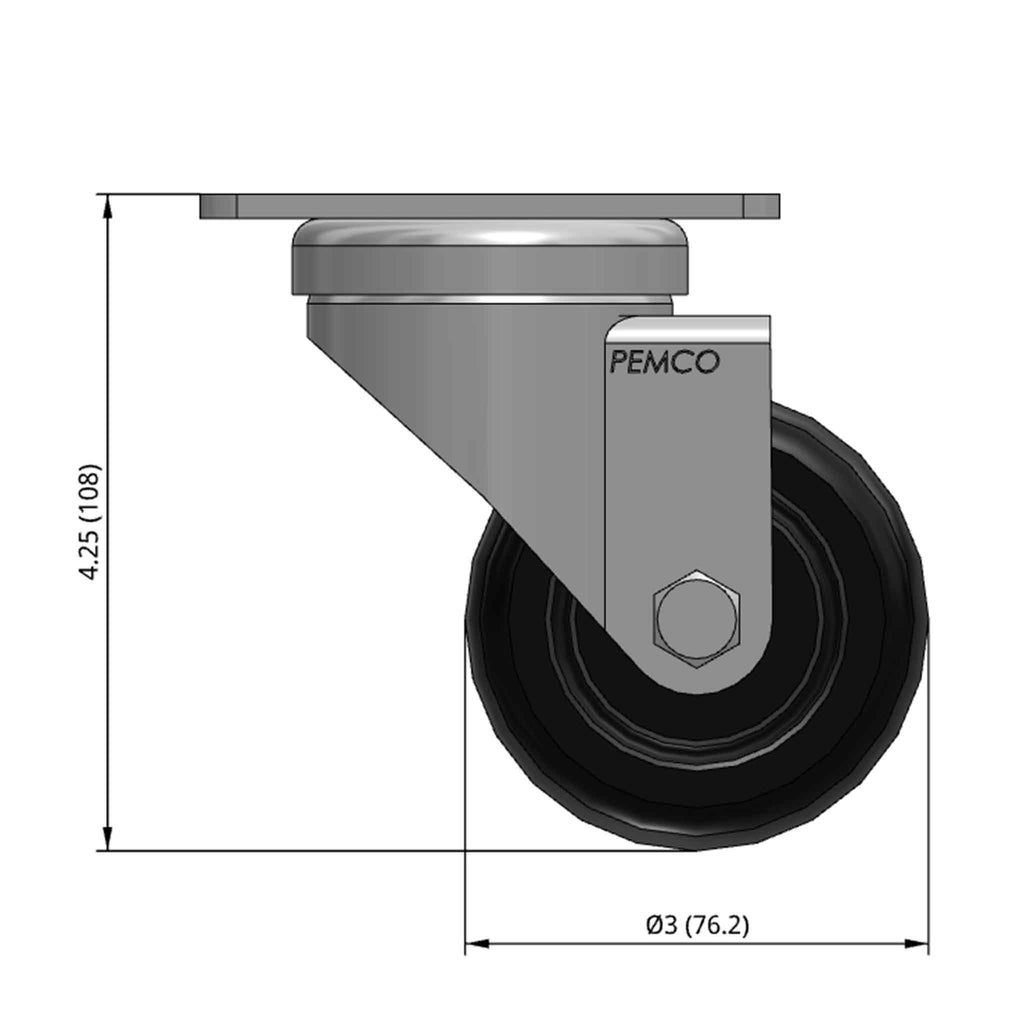

Front dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Polypropylene wheel and 270 lb. capacity part

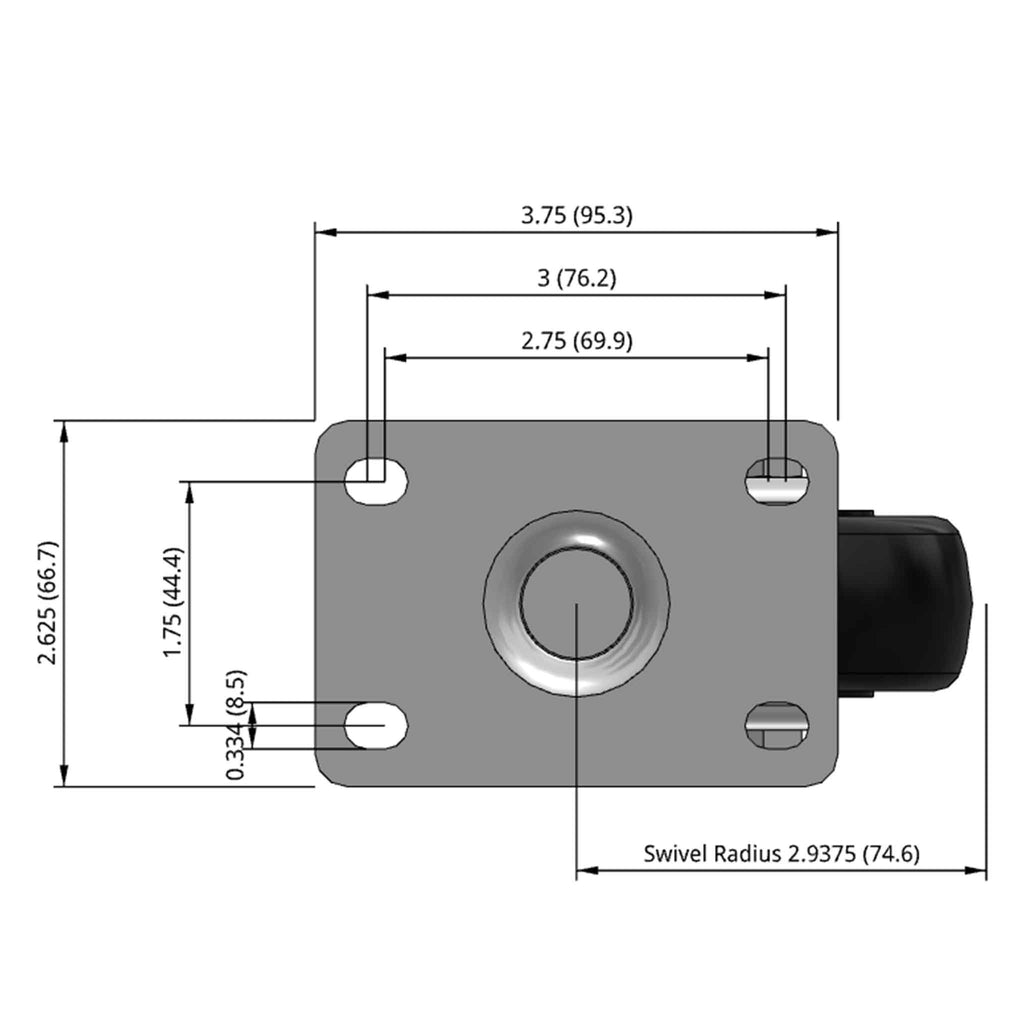

Top dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Polypropylene wheel and 270 lb. capacity part

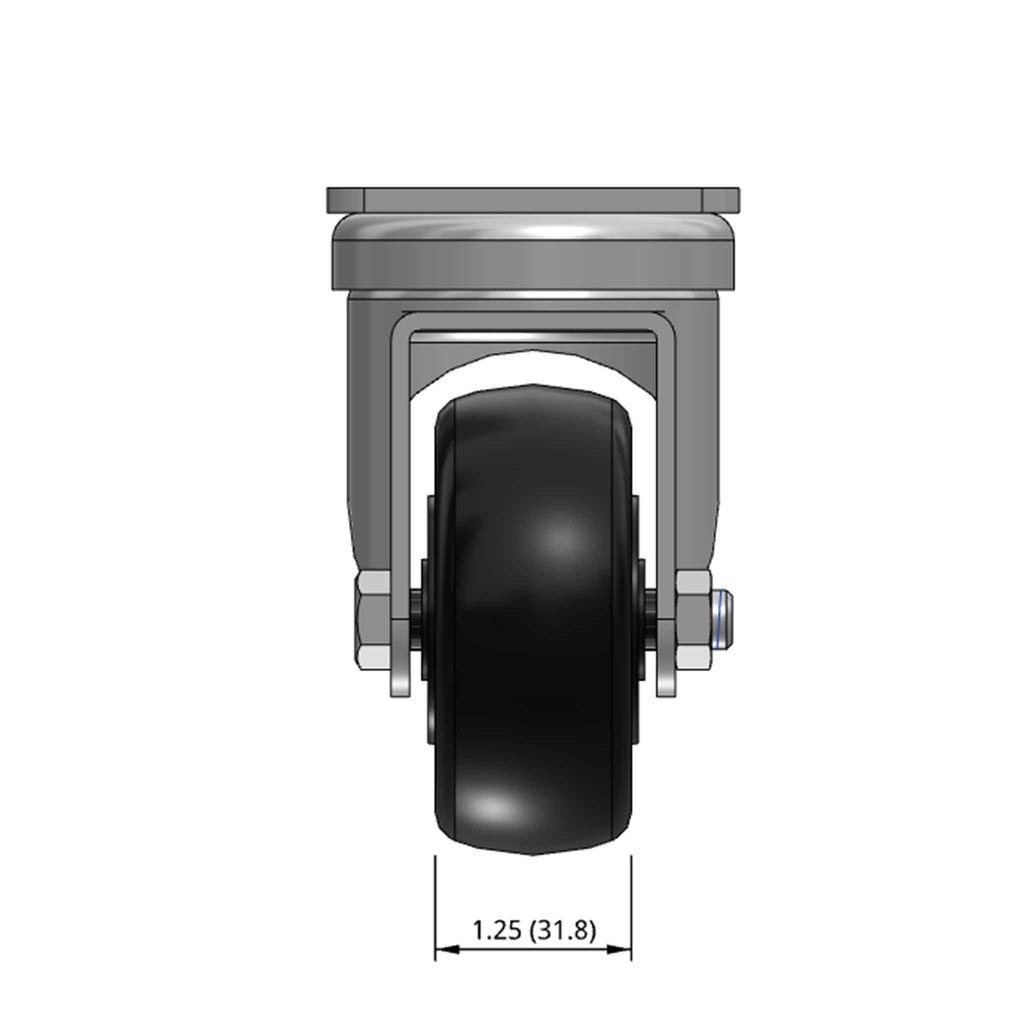

Side dimensioned CAD view of a Pemco Casters 3" x 1.25" wide wheel Swivel caster with 2-5/8" x 3-3/4" top plate, without a brake, Polypropylene wheel and 270 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3"x1.25" Polyolefin Wheel Standard Plate Swivel Caster

Name: 3"x1.25" Polyolefin Wheel Standard Plate Swivel Caster
Brand: Pemco Casters
SKU: AS30P1POD
Price: 8.49 USD
Availability: InStock

Pemco Casters SKU: AS30P1POD
Fastening: 2-5/8" x 3-3/4" top plate | Load Capacity: 270 lb
Mount Height: 4.25 in | Swivel Radius: 2.94 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$8.49 $9.43

Quantity:

Share this product

This 3" x 1-1/4" polypropylene standard duty swivel plate caster is ideal for wash-down and wet environments. Polypropylene wheels are non-marking and non-reactive.Our 35 Series is a competitive, core lineup of 1-1/4" wide casters designed for a wide range of applications with load capacities up to 350 pounds. These casters are available in a variety of size, wheel, fastening and brake options, and features a one-year standard warranty.

Part Number:	35POD30S
SKU	AS30P1POD
Series:	25/35 Series - 1-1/4" Wide (to 350 lb/ea)
Raceway Type:	Dual Ball Swivel Raceways For Smooth Swivel and Strength
Brake:	None
Load Capacity:	270 lb
Mounting Height:	4.25 in
Wheel Diameter:	3 in
Wheel Tread Width:	1.25 in
Wheel Description:	Polypropylene
Wheel Color:	Black
Wheel Bearing:	Delrin
Wheel Profile:	Slight Crown
Wheel Hardness:	70(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	2-5/8" x 3-3/4" top plate
Bolt Hole Pattern:	1-3/4" x 2-3/4" to 3"
Plate Bolt Size Recommended:	5/16"
Swivel Radius:	2.94 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-20F° to +180F°
Mfg:	AS30P1POD
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component

3"x1.25" Polyolefin Wheel Standard Plate Swivel Caster

Description

Product Details

Part Number:

35POD30S

SKU

AS30P1POD

Series:

25/35 Series - 1-1/4" Wide (to 350 lb/ea)

Raceway Type:

Dual Ball Swivel Raceways For Smooth Swivel and Strength

Brake:

None

Load Capacity:

270 lb

Mounting Height:

4.25 in

Wheel Diameter:

3 in

Wheel Tread Width:

1.25 in

Wheel Description:

Polypropylene

Wheel Color:

Black

Wheel Bearing:

Delrin

Wheel Profile:

Slight Crown

Wheel Hardness:

70(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

2-5/8" x 3-3/4" top plate

Bolt Hole Pattern:

1-3/4" x 2-3/4" to 3"

Plate Bolt Size Recommended:

5/16"

Swivel Radius:

2.94 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-20F° to +180F°

Mfg:

AS30P1POD

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability, NSF listed component
